Shop TE CONNECTIVITY

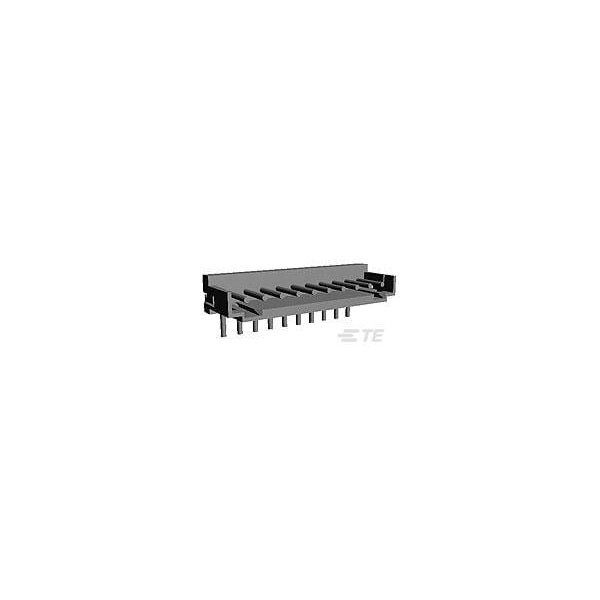

CT CONN MT HDR ASSY H 14P NAT

  • Mfr # 1-292253-4

  • Zoro # G500937544

product price:
$
1.79
/ea
Sold in multiples of 61 for $109.19

Key Features

Color
Natural
Min. Single Wire Size
28 AWG
Insulation Material
Nylon
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-292253-4
Zoro #
G500937544
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.157 in
Height
0.346 in
Max. Single Wire Size
22 AWG
Length
29.8 mm
Contact Plating Thickness
1 µm
Minimum Single Wire Size
28 AWG
Maximum Single Wire Size
22 AWG
For Minimum Wire Size - Solid
28 AWG

Details

Item
Connector
Color
Natural
Insulation Material
Nylon
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
Current
4 A
Standards
CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Connection Material
Brass
Material
Nylon
Features
Partially Shrouded
Terminal Type
Through Hole - Solder
Connector Type
Header
Wire Type
Discrete
Hole Center to Center
2 mm
Max. Temp.
105°C
For Use With
Receptacle Connector
Number of Contacts
14
Contact Finish
Tin Plated
Contact Type
Pin
Current Rating
4 A
Number of Rows
1
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
