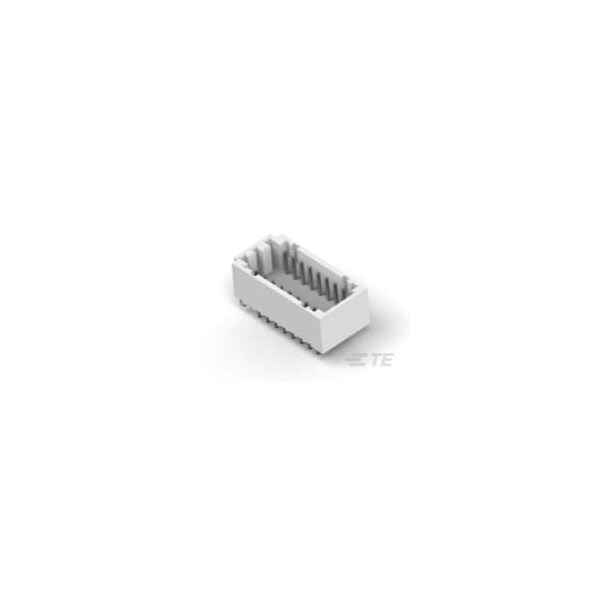

Te Connectivity CT DOUBLE ROW ASSY V 16P W/BOS 1-292141-6

CT DOUBLE ROW ASSY V 16P W/BOS (Discontinued)

  • Mfr # 1-292141-6
  • Zoro # G601016995
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-292141-6
Zoro #
G601016995
UPC #
-
Country of Origin
China

Dimensions

Height
7.5 mm [ .295 in ]
Width
10.7 mm [ .421 in ]
Length
21.9 mm [ .862 in ]
Wire/Cable Size (AWG)
28 to 22
Wire/Cable Size (mm²)
.08 to .33
Contact Mating Area Plating Thickness
1 µm [ 39.37 µin ]
Contact Termination Area Plating Thickness
1 µm [ 39.37 µin ]
Tail Length
3.2 mm [ .126 in ]
PCB Thickness (Recommended)
1.6 mm [ .063 in ]
Mating Post Length
4.7 mm [ .185 in ]
Wire/Cable Size (CMA)
159.8 to 642.4

Details

Connector Type
Header
For Use With
Receptacle Assembly
Termination Method to PC Board
Through Hole - Solder
Number of Positions
16
Connector System
Wire-to-Board
Shape
Rectangular
Centerline
2 mm [ .079 in ]
Connector Style
Header
PCB Mount Retention Type
Boardlocks
PCB Mounting Style
Through Hole
PCB Mounting Orientation
Vertical
Tail Orientation
Inline
Contact Mating Area Plating Material
Tin
Mating Retention Type
Polarized Lock
Contact Current Rating (A)
4
Contact Retention
Without
Housing Color
Natural
PCB Mount Retention
With
Mating Retention
Without
Mating Alignment
With
Header Type
Shrouded
Housing Material
66 Nylon
Contact Design
Round Post
Pick and Place Cover
Without
Contact Transmits (Typical)
Signal (Data)
Backwall/Post Interruptions
Without
Wire/Cable Type
Discrete Wire
Contact Base Material
Brass
UL Flammability Rating
UL 94V-0
Contact Termination Area Plating Material
Tin
PCB Mount Alignment Type
Boss
Internal/External
Internal
Agency/Standard
CSA, UL
Operating Temperature Range
-22 to 221 °C [ -30 to 105 °F ]
Contact Shape
Rounded
Number of Rows
2
Product Type
Connector
Applies To
Printed Circuit Board
PCB Mount Alignment
With
Mating Alignment Type
Polarization
Operating Voltage
125 VAC [ 125 VDC ]
Tail Plating Material
Tin
Row-to-Row Spacing
6.5 mm [ .256 in ]
Contact Type
Pin
Strain Relief
Without
