Shop TE CONNECTIVITY

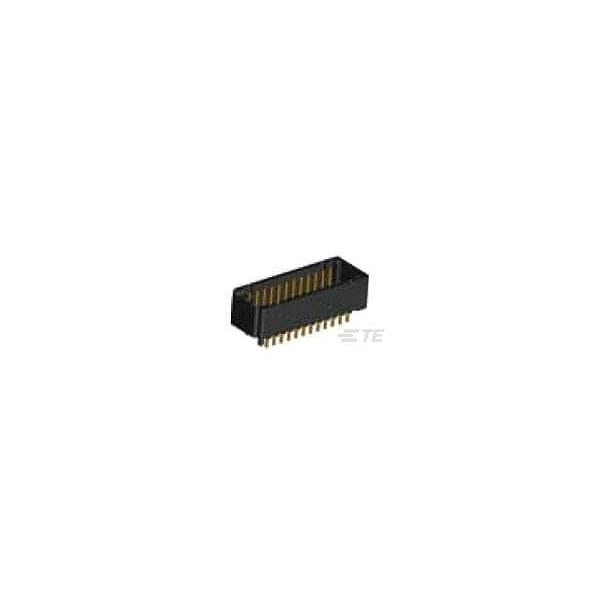

CT DOUBLE ROW ASSY V 22P HDR N

  • Mfr # 2-292252-2
  • Zoro # G800938876
product price:
$
1.35
/ea
Sold in multiples of 150 for $202.50

Key Features

Type
Connector
Color
Natural
Min. Single Wire Size
28 AWG
Insulation Material
Nylon
Max. Voltage
125V AC, 125V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-292252-2
Zoro #
G800938876
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
1.098 in
Height
0.295 in
Max. Single Wire Size
22 AWG
Length
10.7 mm
Contact Plating Thickness
1 µm
Minimum Single Wire Size
28 AWG
Maximum Single Wire Size
22 AWG

Details

Item
Connector
Type
Connector
Color
Natural
Insulation Material
Nylon
Max. Voltage
125V AC, 125V DC
Maximum Voltage
125 V AC/DC
Current
4 A
Standards
CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
For Use With
MT Receptacle Assembly
Hole Center to Center
2 mm
Material
Nylon
Features
Shrouded
Connector Type
Header
Max. Temp.
105°C
Terminal Type
Through Hole - Solder
Connection Material
Brass
Wire Type
Discrete
Number of Contacts
22
Contact Type
Pin
Number of Rows
2
Current Rating
4 A
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Termination Style
Through Hole - Solder
