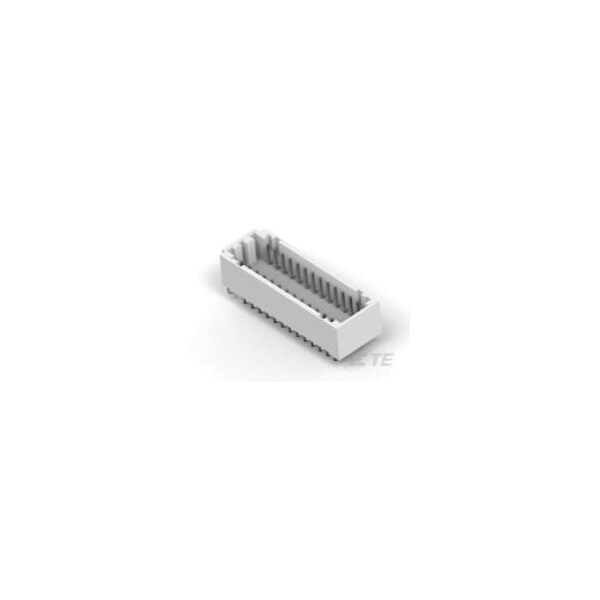

Te Connectivity CT DOUBLE ROW ASSY V 26P W/BOS 2-292141-6

CT DOUBLE ROW ASSY V 26P W/BOS (Discontinued)

  • Mfr # 2-292141-6
  • Zoro # G401016935
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-292141-6
Zoro #
G401016935
UPC #
-
Country of Origin
China

Dimensions

Height
7.5 mm [ .295 in ]
Width
10.7 mm [ .421 in ]
Length
31.9 mm [ 1.255 in ]
Mating Post Length
4.7 mm [ .185 in ]
Contact Mating Area Plating Thickness
1 µm [ 39.37 µin ]
Contact Termination Area Plating Thickness
1 µm [ 39.37 µin ]
Wire/Cable Size (AWG)
28 to 22
Tail Length
3.2 mm [ .126 in ]
Wire/Cable Size (mm²)
.08 to .33
Wire/Cable Size (CMA)
159.8 to 642.4
PCB Thickness (Recommended)
1.6 mm [ .063 in ]

Details

Connector Type
Header
For Use With
Receptacle Assembly
Contact Termination Area Plating Material
Tin
PCB Mount Alignment Type
Boss
Mating Retention Type
Polarized Lock
Contact Retention
Without
Connector Style
Header
Contact Base Material
Brass
PCB Mounting Style
Through Hole
Header Type
Shrouded
Pick and Place Cover
Without
UL Flammability Rating
UL 94V-0
Connector System
Wire-to-Board
Contact Shape
Rounded
PCB Mounting Orientation
Vertical
Agency/Standard
CSA, UL
Contact Design
Round Post
Mating Retention
Without
PCB Mount Retention
With
Centerline
2 mm [ .079 in ]
Operating Temperature Range
-22 to 221 °C [ -30 to 105 °F ]
Mating Alignment Type
Polarization
Backwall/Post Interruptions
Without
Applies To
Printed Circuit Board
Strain Relief
Without
Mating Alignment
With
Wire/Cable Type
Discrete Wire
Contact Transmits (Typical)
Signal (Data)
Number of Rows
2
Tail Orientation
Inline
Housing Color
Natural
Product Type
Connector
PCB Mount Retention Type
Boardlocks
Tail Plating Material
Tin
Row-to-Row Spacing
6.5 mm [ .256 in ]
Operating Voltage
125 VAC [ 125 VDC ]
Housing Material
66 Nylon
Contact Current Rating (A)
4
Internal/External
Internal
Shape
Rectangular
Contact Mating Area Plating Material
Tin
Termination Method to PC Board
Through Hole - Solder
Contact Type
Pin
Number of Positions
26
PCB Mount Alignment
With
