Shop TE CONNECTIVITY

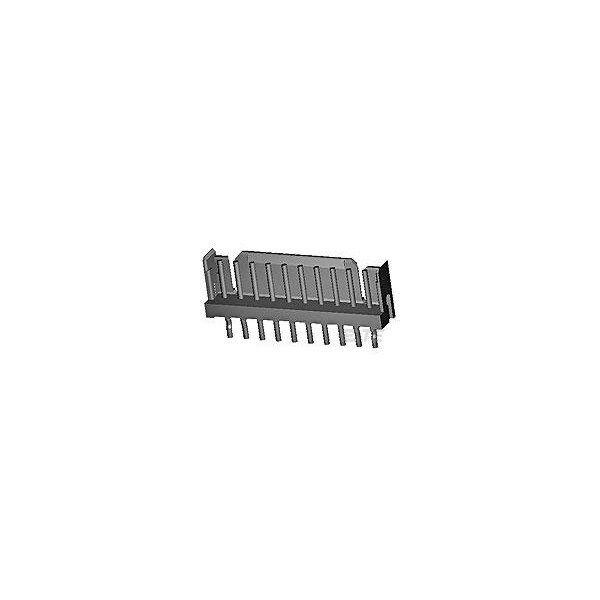

CT P/HDR ASSY V 9P W/KINK BLUE

  • Mfr # 2-292161-9

  • Zoro # G700938549

product price:  $0.69
/ea
Sold in multiples of 112 for $77.28

Key Features

Color
Blue
Min. Single Wire Size
28 AWG
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
Current
4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-292161-9
Zoro #
G700938549
UPC #
-
Country of Origin
United States

Dimensions

Min. Single Wire Size
28 AWG
Width
0.141 in
Height
6.8 mm
Length
19.8 mm
Max. Single Wire Size
22 AWG
Contact Plating Thickness
1 to 2 µm
Minimum Single Wire Size
28 AWG
Maximum Single Wire Size
22 AWG

Details

Item
PCB Mount Header
Color
Blue
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
Current
4 A
Standards
UL 94V-0; CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Material
Nylon
Wire Type
Discrete
Hole Center to Center
2 mm
Connection Material
Brass
Terminal Type
Through Hole - Solder
Features
Panel Mount Feature; Partially Shrouded
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Contact Finish
Tin Plated
Number of Rows
1
Number of Contacts
9
Current Rating
4 A
Contact Type
Pin
