  11. CT P/HDR BOX H ASSY 8P W/KINK
This item is Discontinued.

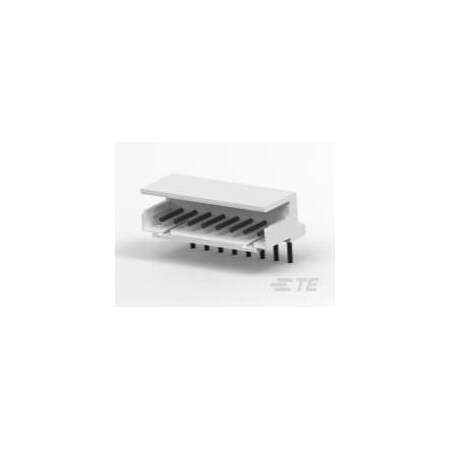

Te Connectivity CT P/HDR BOX H ASSY 8P W/KINK 292250-8

CT P/HDR BOX H ASSY 8P W/KINK (Discontinued)

  • Mfr # 292250-8
  • Zoro # G000938430
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
292250-8
Zoro #
G000938430
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.228 in
Height
0.346 in
Max. Single Wire Size
22 AWG
Length
17.8 mm
Contact Plating Thickness
1 µm
Minimum Single Wire Size
28 AWG
Maximum Single Wire Size
22 AWG

Details

Item
Connector
Color
Natural
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
Standards
CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Wire Type
Discrete
Max. Temp.
105°C
Terminal Type
Through Hole - Solder
Features
Shrouded
Connector Type
Header
Hole Center to Center
2 mm
Material
Nylon
For Use With
Receptacle Connector
Connection Material
Brass
Number of Rows
1
Number of Contacts
8
Contact Type
Pin
Contact Finish
Tin Plated
Current Rating
4 A
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
