  11. CT RELAY HDR ASSY 15P NAT
This item is Discontinued.

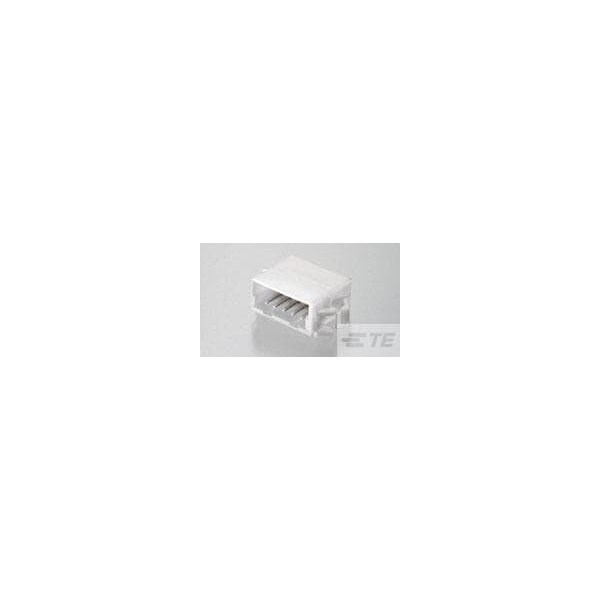

Te Connectivity CT RELAY HDR ASSY 15P NAT 1-292254-5

CT RELAY HDR ASSY 15P NAT (Discontinued)

  • Mfr # 1-292254-5
  • Zoro # G800937695
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-292254-5
Zoro #
G800937695
UPC #
-
Country of Origin
United States

Dimensions

Min. Single Wire Size
30 AWG
Width
0.236 in
Height
0.472 in
Max. Single Wire Size
22 AWG
Length
33.78 mm
Contact Plating Thickness
1 µm
Maximum Single Wire Size
22 AWG
Minimum Single Wire Size
30 AWG

Details

Item
Connector
Color
Natural
Insulation Material
Nylon
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
Current
4 A
Standards
CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Nylon
Connector Type
Header
Hole Center to Center
2 mm
Wire Type
Discrete
Max. Temp.
105°C
For Use With
Crimp Type II Connector, MT Connector
Features
Shrouded
Connection Material
Brass
Contact Finish
Tin Plated
Number of Rows
1
Number of Contacts
15
Contact Type
Pin
Current Rating
4 A
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
