Shop TE CONNECTIVITY

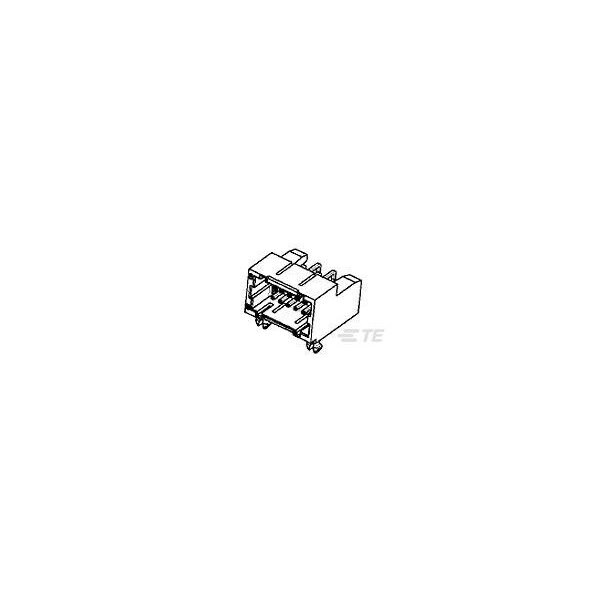

DBL ROW (H) DIP TYPE WITH BOAR

  • Mfr # 3-292262-0
  • Zoro # G901044049

product price:
$
7.29
/ea
Sold in multiples of 400 for $2,916.00

Key Features

Min. Single Wire Size
28 AWG
Max. Voltage
50V AC, 50V DC
Max. Temp.
105°C
Standards
UL 94V-0; CSA Certified; UL E28476
Width
0.358 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3-292262-0
Zoro #
G901044049
UPC #
-
Country of Origin
United States
Item
PCB Mount Header
Max. Voltage
50V AC, 50V DC
Max. Temp.
105°C
Standards
UL 94V-0; CSA Certified; UL E28476
Color
Natural
Features
Shrouded
Material
Nylon
Terminal Finish
Pre-Tin Plated
Hole Center to Center
1.5 mm
Terminal Type
Through Hole - Solder
Current Rating
2 A
Contact Type
Pin
Wire Type
Discrete
Connector Terminates To
Printed Circuit Board
Number of Rows
2
Flammability Rating
UL 94 V-0
Contact Finish
Pre-Tin Plated
Number of Contacts
30
Connection Material
Brass

Dimensions

Min. Single Wire Size
28 AWG
Width
0.358 in
Height
13.15 mm
Length
28 mm
Max. Single Wire Size
24 AWG
Contact Plating Thickness
1 µm
Max. Insulation Dia.
0.041 in
