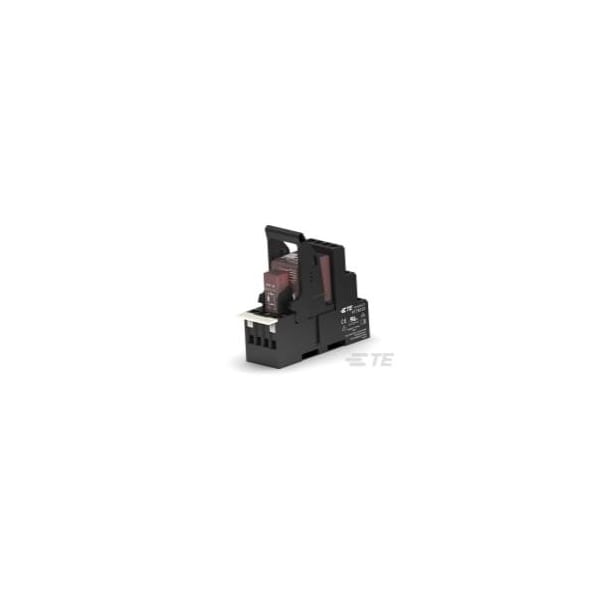

Te Connectivity DIN Rail, Power Relay, 12 A, Screw 8-1415534-7 - main

DIN Rail, Power Relay, 12 A, Screw

  • Mfr # 8-1415534-7

  • Zoro # G701026818

product price:  $59.65
/ea
Sold in multiples of 5 for $298.25

Key Features

Mounting Style
DIN Rail
Electrical Connection
Screw
Coil Voltage
12V DC
Current Rating
12 A
Features
Manual Operation; Electrical Indicator, LED
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
8-1415534-7
Zoro #
G701026818
UPC #
-
Country of Origin
Austria

Details

Item
General Purpose Power Relay
Mounting Style
DIN Rail
Electrical Connection
Screw
Coil Voltage
12V DC
Current Rating
12 A
Features
Manual Operation; Electrical Indicator, LED
Contact Material
AgNi90/10
Number of Poles
2
Power Consumption - Relay
750 mW
Insulation Clearance
4 mm [ .157 in ]
Contact Limiting Short-Time Current
12A
Contact Limiting Continuous Current
12A
Contact Voltage Rating
240V AC
Contact Limiting Breaking Current
12A
Coil Resistance
192 Ω
Contact Limiting Making Current
24A
Dielectric Voltage
2500 Vrms Adjacent Contacts; 1200 Vrms Coil and Contact; 2500 Vrms Open Contacts
Coil Type
Monostable, DC
Operating Temp. Range
50 to 70°C
Switching Voltage
400V AC
Protection Category
RTI
Contact Rating
12A
Insulation Creepage
4 mm [ .157 in ]
Contact Form
DPDT-CO
Contact Rating (AC)
12 A @ 240V
