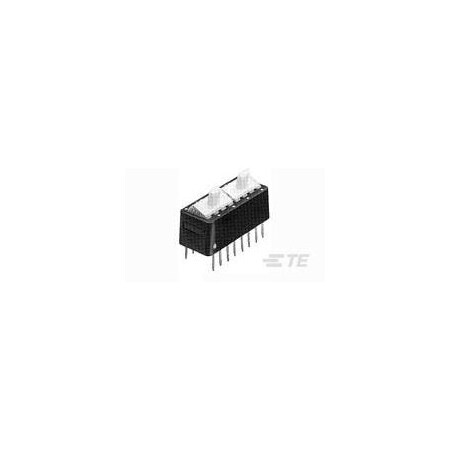

Dip Switches / Sip Switches Dip Sw Assy-Blk Lp Act-4Pos (Discontinued)
- Mfr # 5-435470-5
- Zoro # G405813028
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5-435470-5
Zoro #
G405813028
UPC #
-
Country of Origin
Mexico
Dimensions
Length
12.2 mm [ .48 in ]
Height
9.14 mm [ .36 in ]
Contact Mating Area Plating Thickness (µin)
30
Termination Post Length
3.56 mm [ .14 in ]
Details
Low Profile
Yes
Contact Current Rating (A)
1.5
Solder Tail Contact Plating
Gold over Nickel
Housing Material
Polyester GF
Contact Mating Area Plating Material
Gold
Actuator Style
Lever (Top Actuated)
Mounting Type
Through Hole
Centerline
2.54 mm [ .1 in ]
Voltage Rating (VDC)
50
Contact Base Material
Copper Alloy
Switch Type
DIP
Number of Positions
4
Sealed
No
Operating Temperature Range (°C)
-55 to 105
Housing Color
Black
Number of Switches
1
Auto-Insertable
No
Product Type
Switch
Configuration (Pole-Throw)
Double Pole - Double Throw
UL Flammability Rating
UL 94V-0
