Shop TE CONNECTIVITY

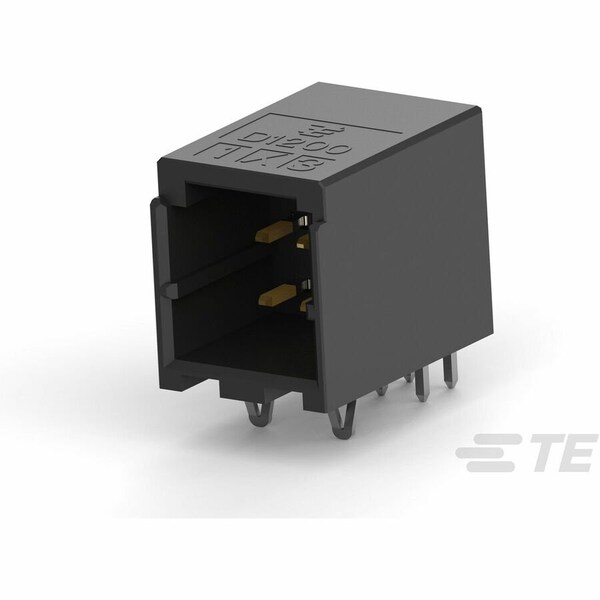

DYNAMIC 1200D HDR ASSY H 6P XBLACK GOLD

  • Mfr # 1-1827876-3

  • Zoro # G500937698

product price:
$
2.59
/ea
Sold in multiples of 46 for $119.14

Key Features

Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
5 A
Series
1000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1827876-3
Zoro #
G500937698
UPC #
-
Country of Origin
China

Dimensions

Width
0.368 in
Height
11.8 mm
Length
0.397 in

Details

Item
Connector
Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
5 A
Series
1000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
0.098 in
Connector Type
Header
Max. Temp.
105°C
Material
Glass-Filled Polyester
Green Environmental Attribute
Halogen Free
Terminal Type
Through Hole - Solder
For Use With
Receptacle Housing
Features
Shrouded
Number of Rows
2
Contact Type
Tab
Contact Finish
Gold Plated
Number of Contacts
6
Current Rating
5 A
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
