Shop TE CONNECTIVITY

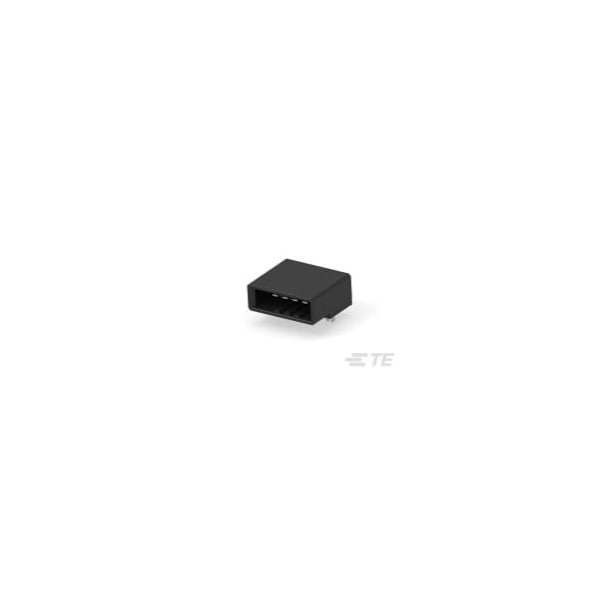

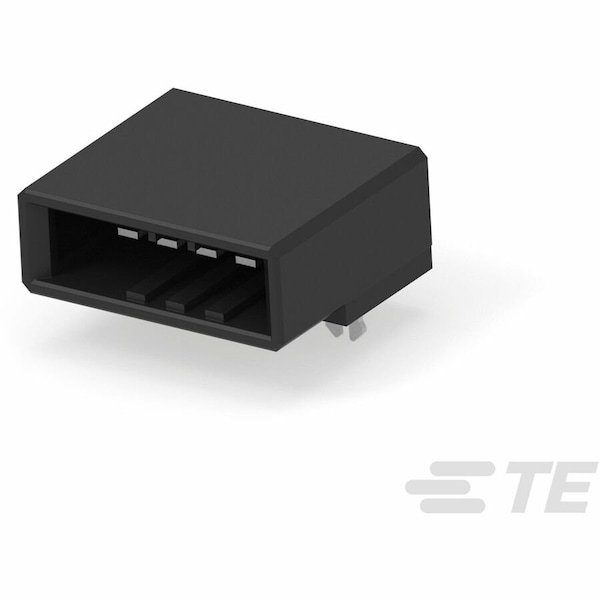

DYNAMIC 3100 HDR ASSY 4P H K/Y

  • Mfr # 2-178294-5

  • Zoro # G400939280

product price:  $1.39
/ea
Sold in multiples of 152 for $211.28

Key Features

Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
8 A
Series
3000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-178294-5
Zoro #
G400939280
UPC #
-
Country of Origin
China

Dimensions

Width
0.368 in
Height
9.35 mm
Length
1 in

Details

Item
Connector
Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
8 A
Series
3000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
0.149 in
Features
Shrouded
For Use With
Receptacle Housing
Material
Glass-Filled Polyester
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Connector Type
Header
Green Environmental Attribute
Halogen Free
Contact Finish
Tin Plated
Contact Type
Tab
Current Rating
8 A
Number of Contacts
4
Number of Rows
1
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
