This item is Discontinued.

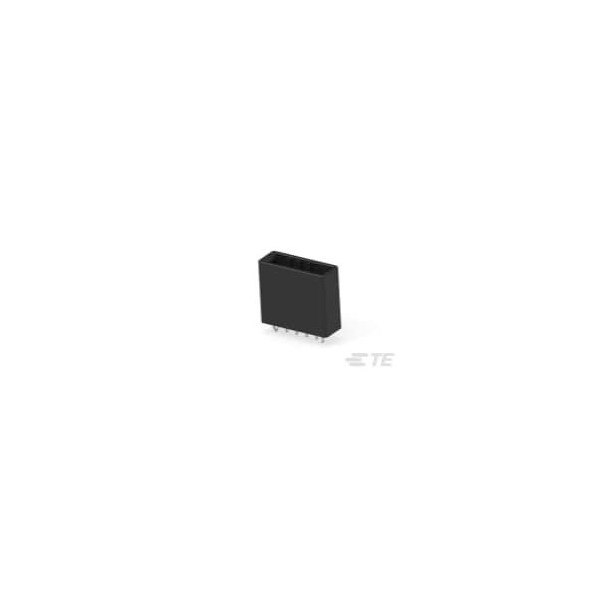

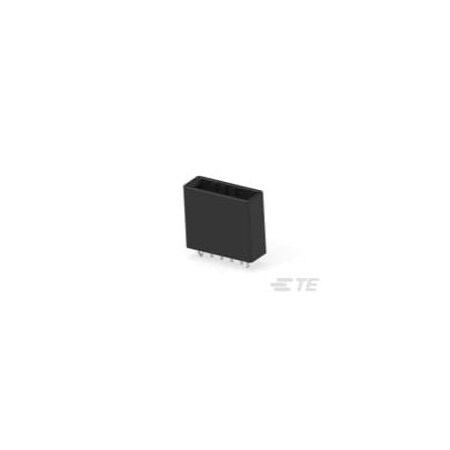

Te Connectivity DYNAMIC 3100 HDR ASSY 4P V K/Y 2-178314-5

DYNAMIC 3100 HDR ASSY 4P V K/Y (Discontinued)

  • Mfr # 2-178314-5
  • Zoro # G200939336
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-178314-5
Zoro #
G200939336
UPC #
-
Country of Origin
China

Dimensions

Width
0.368 in
Height
21.6 mm
Length
1 in

Details

Item
Connector
Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Series
3000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Shrouded
For Use With
Receptacle Housing
Terminal Type
Through Hole - Solder
Green Environmental Attribute
Halogen Free
Connector Type
Header
Max. Temp.
105°C
Material
Glass-Filled Polyester
Hole Center to Center
0.149 in
Contact Finish
Tin Plated
Contact Type
Tab
Number of Contacts
4
Number of Rows
1
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
