  11. DYNAMIC 3100 HDR ASSY 6P H K/Y
Te Connectivity DYNAMIC 3100 HDR ASSY 6P H K/Y 2-178296-2 - main

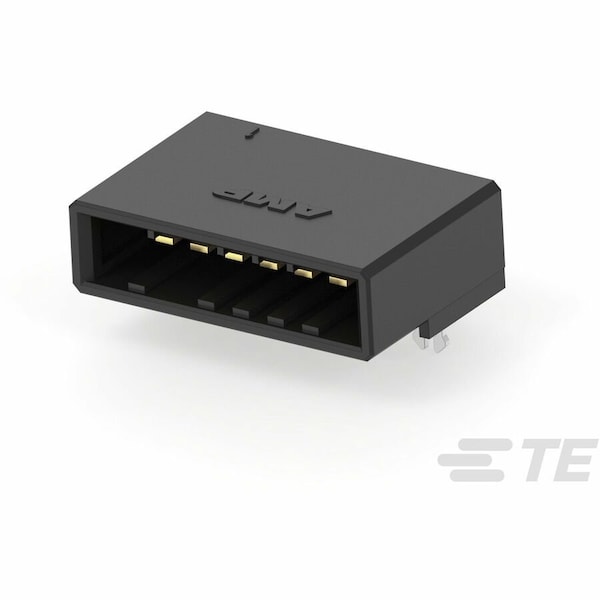

DYNAMIC 3100 HDR ASSY 6P H K/Y

  • Mfr # 2-178296-2

  • Zoro # G700939072

product price: $4.39
/ea
Sold in multiples of 45 for $197.55

Key Features

Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
15 A
Series
3100
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-178296-2
Zoro #
G700939072
UPC #
-
Country of Origin
China

Dimensions

Width
0.87 in
Height
9.35 mm
Length
33.05 mm

Details

Item
Connector
Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
15 A
Series
3100
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
For Use With
Receptacle Housing
Features
Shrouded
Material
Glass-Filled Polyester
Terminal Type
Through Hole - Solder
Connector Type
Header
Green Environmental Attribute
Halogen Free
Max. Temp.
105°C
Hole Center to Center
0.149 in
Number of Contacts
6
Current Rating
15 A
Contact Finish
Gold Plated
Number of Rows
1
Contact Type
Tab
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
