  11. DYNAMIC 3200 HDR ASSY 2P H

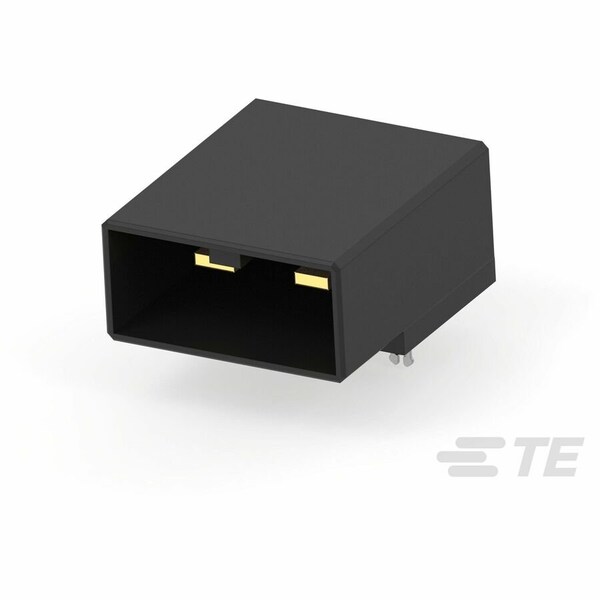

Te Connectivity DYNAMIC 3200 HDR ASSY 2P H 1-179276-2 - main

DYNAMIC 3200 HDR ASSY 2P H

  • Mfr # 1-179276-2

  • Zoro # G900939162

product price: $1.75
/ea
Sold in multiples of 52 for $91.00

Key Features

Color
Black
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Current
15 A
Series
3000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1-179276-2
Zoro #
G900939162
UPC #
-
Country of Origin
China

Dimensions

Width
0.87 in
Height
9.35 mm
Length
0.751 in

Details

Item
Connector
Color
Black
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Current
15 A
Series
3000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder
Features
Shrouded
Hole Center to Center
0.2 in
Connector Type
Header
Material
Glass-Filled Polyester
Green Environmental Attribute
Halogen Free
Max. Temp.
105°C
For Use With
Receptacle Housing
Current Rating
15 A
Contact Finish
Gold Plated
Contact Type
Tab
Number of Rows
1
Number of Contacts
2
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
