  11. DYNAMIC 3200 VERTI. HDR ASY 4P

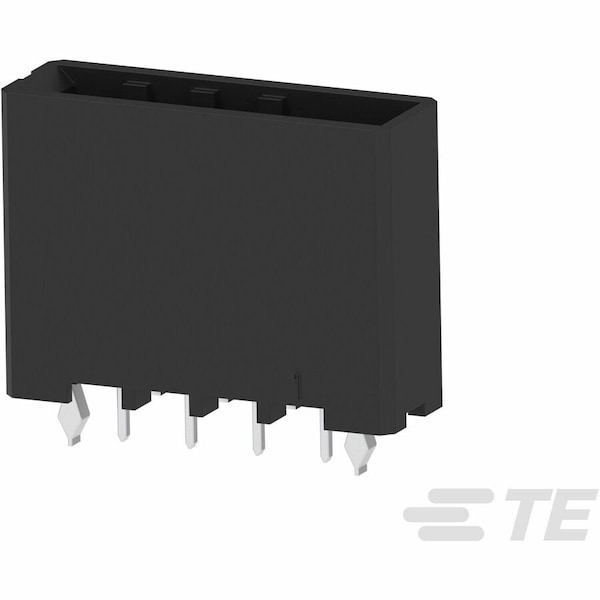

Te Connectivity DYNAMIC 3200 VERTI. HDR ASY 4P 1-917338-3 - main

DYNAMIC 3200 VERTI. HDR ASY 4P

  • Mfr # 1-917338-3

  • Zoro # G900937625

product price: $3.65
/ea
Sold in multiples of 34 for $124.10

Key Features

Color
Black
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Current
15 A
Series
3000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1-917338-3
Zoro #
G900937625
UPC #
-
Country of Origin
China

Dimensions

Width
0.368 in
Height
21.6 mm
Length
1.15 in

Details

Item
Connector
Color
Black
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Current
15 A
Series
3000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Shrouded
Hole Center to Center
0.2 in
For Use With
Receptacle Housing
Green Environmental Attribute
Halogen Free
Max. Temp.
105°C
Connector Type
Header
Material
Glass-Filled Polyester
Terminal Type
Through Hole - Solder
Number of Rows
1
Contact Finish
Gold Plated
Contact Type
Tab
Number of Contacts
4
Current Rating
15 A
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
