This item is Discontinued.

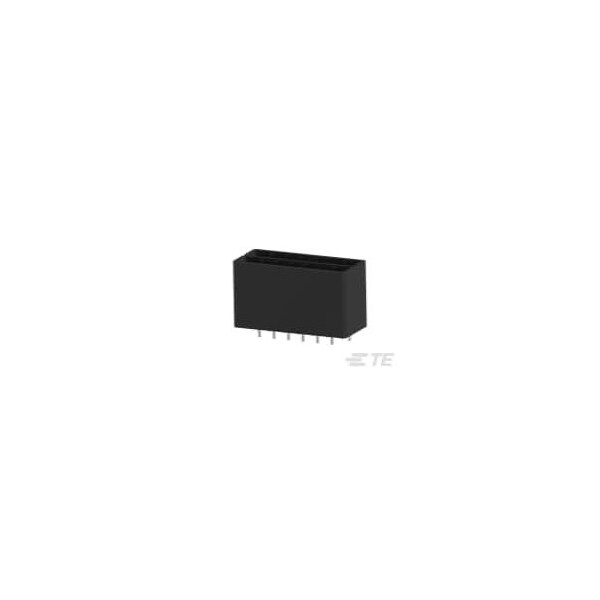

Te Connectivity DYNAMIC D-3200 HDR ASSY 12P V 3-917658-2

DYNAMIC D-3200 HDR ASSY 12P V (Discontinued)

  • Mfr # 3-917658-2
  • Zoro # G500940063
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-917658-2
Zoro #
G500940063
UPC #
-
Country of Origin
China

Dimensions

Width
0.668 in
Height
21.6 mm
Length
1.55 in

Details

Item
Connector
Type
Header
Color
Black
Insulation Material
Glass-Filled Polyester
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Series
3000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Glass-Filled Polyester
For Use With
Receptacle Housing
Hole Center to Center
0.2 in
Max. Temp.
105°C
Terminal Type
Through Hole - Solder
Connector Type
Header
Features
Shrouded
Green Environmental Attribute
Halogen Free
Contact Type
Tab
Contact Finish
Gold Plated
Number of Contacts
12
Number of Rows
2
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Termination Style
Through Hole - Solder
