Contact our U.S. based teamSpecifications
Product Information
MFR #
8-353082-2
Zoro #
G400939853
UPC #
-
Country of Origin
China
Dimensions
Width
0.488 in
Height
32 mm
Length
1.51 in
Contact Plating Thickness
0.38 µm
Details
Item

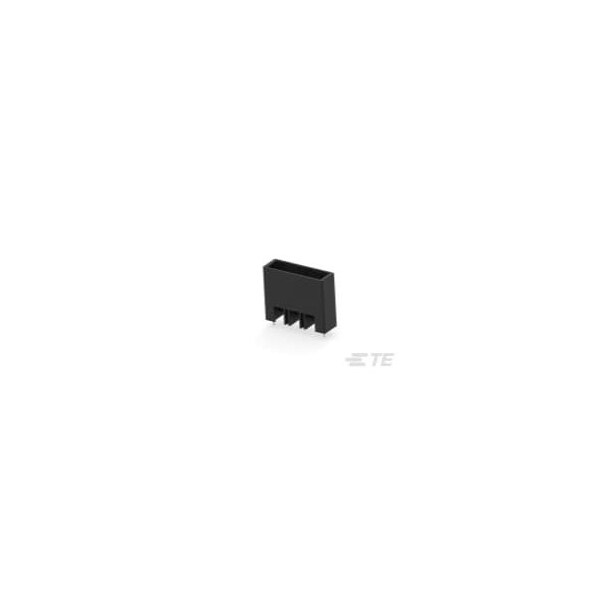

PCB Mount Header
Color
Black
Max. Voltage
630V AC/DC
Maximum Voltage
630 V AC/DC
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Shrouded
Connection Material
Copper Alloy
For Use With
Receptacle Housing
Hole Center to Center
10.16 mm
Material
Glass-Filled Polyester
Max. Temp.
105°C
Number of Contacts
3
Number of Rows
1
Contact Type
Tab
Contact Finish
Gold Plated
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
