  11. DYNAMIC D3100D HDR H 10P ASSY AU038
This item is Discontinued.

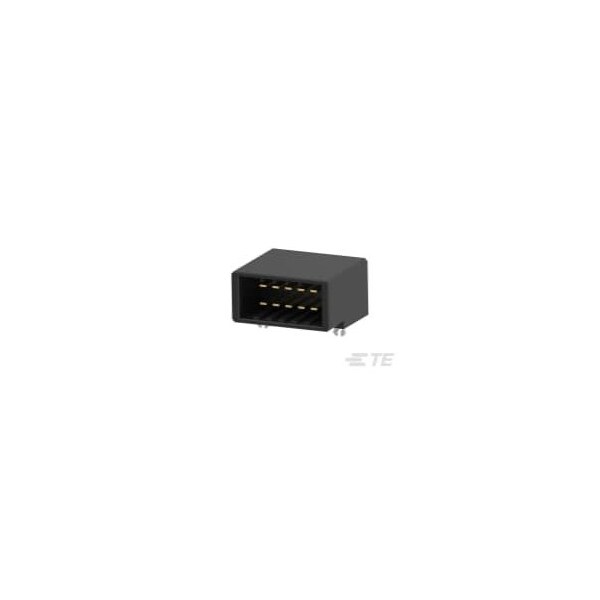

Te Connectivity DYNAMIC D3100D HDR H 10P ASSY AU038 178305-2

DYNAMIC D3100D HDR H 10P ASSY AU038 (Discontinued)

  • Mfr # 178305-2
  • Zoro # G500938381
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
178305-2
Zoro #
G500938381
UPC #
-
Country of Origin
China

Dimensions

Width
1.02 in
Height
14.43 mm
Length
29.24 mm

Details

Item
Connector
Type
Header
Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
15 A
Series
3000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Glass-Filled Polyester
Features
Shrouded
Hole Center to Center
0.149 in
Max. Temp.
105°C
Connector Type
Header
Green Environmental Attribute
Halogen Free
For Use With
Receptacle Housing
Terminal Type
Through Hole - Solder
Contact Finish
Gold Plated
Contact Type
Tab
Number of Contacts
10
Current Rating
15 A
Number of Rows
2
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Termination Style
Through Hole - Solder
