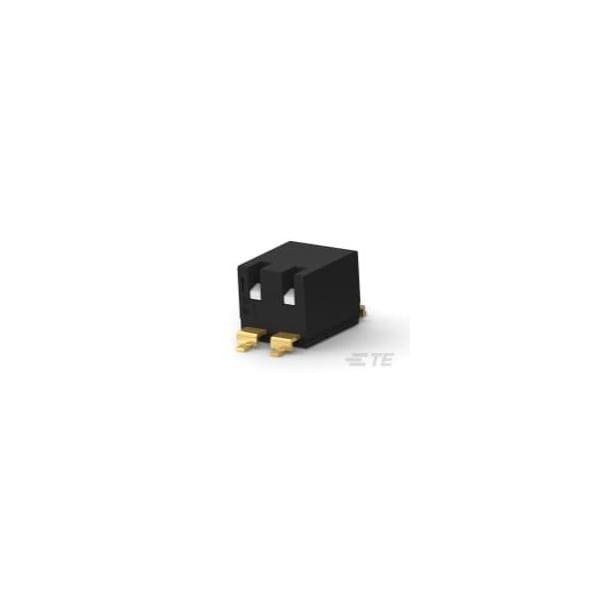

E STACK PIANO 2P G SHORT SEAL T&R PD OFF
Mfr # 5-2319764-6
Zoro # G800979794
product price: $3.15
/eaSold in multiples of 700 for $2,205.00
Key Features
Length
.196 in
Height
.197 in
Solder Tail Contact Plating
Gold Flash over Nickel
Number of Positions
2
Voltage Rating
24 VDC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5-2319764-6
Zoro #
G800979794
UPC #
-
Country of Origin
China
Dimensions
Length
.196 in
Height
.197 in
Details
Solder Tail Contact Plating
Gold Flash over Nickel
Number of Positions
2
Voltage Rating
24 VDC
Mounting Type
Surface Mount
Sealed
Yes
Operating Temperature Range
-20 to 85°C
Switch Type
DIP Switch
Housing Color
Black
Actuator Style
Piano (Side Actuated)
Seal Type
Tape
Shunt Type
DIP
Mounting Angle
Vertical
Centerline
.1 in
Actuator Color
White
Housing Material
High Temperature Nylon
Number of Switches
2
Configuration (Pole-Throw)
Single Pole - Single Throw
Contact Mating Area Plating Material
Gold Flash
Product Type
Switch
Description
