Te Connectivity EMIX CONN. 1.5MM PITCH HDR R/A 4P 5-1775444-4 - main

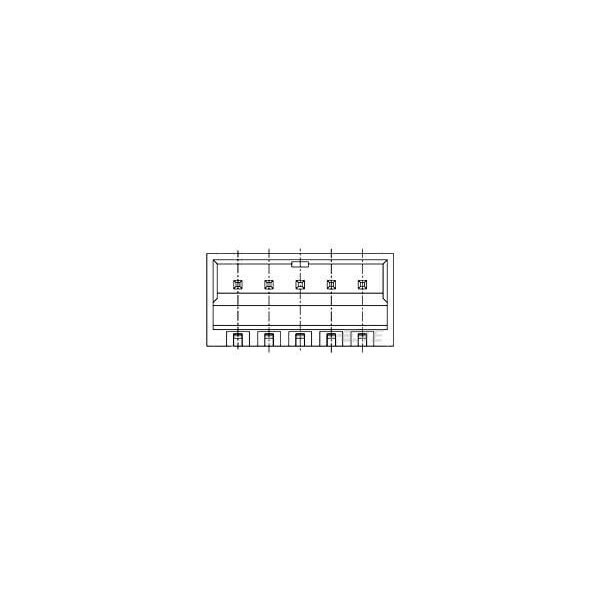

EMIX CONN. 1.5MM PITCH HDR R/A 4P

  • Mfr # 5-1775444-4

  • Zoro # G500940384

product price:  $0.34
/ea
Sold in multiples of 1000 for $340.00

Key Features

Color
Natural
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Current
3 A
Width
0.2756 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5-1775444-4
Zoro #
G500940384
UPC #
-
Country of Origin
China

Dimensions

Width
0.2756 in
Height
4.45 mm
Length
7.5 mm
Contact Plating Thickness
2.54 µm

Details

Item
PCB Mount Header
Color
Natural
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Current
3 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Surface Mount
Hole Center to Center
1.5 mm
Max. Temp.
105°C
Material
Thermoplastic
Features
Partially Shrouded
Connection Material
Brass
Number of Contacts
4
Current Rating
3 A
Contact Type
Pin
Contact Finish
Tin Plated
Number of Rows
1
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Bright Tin Plated

Description
