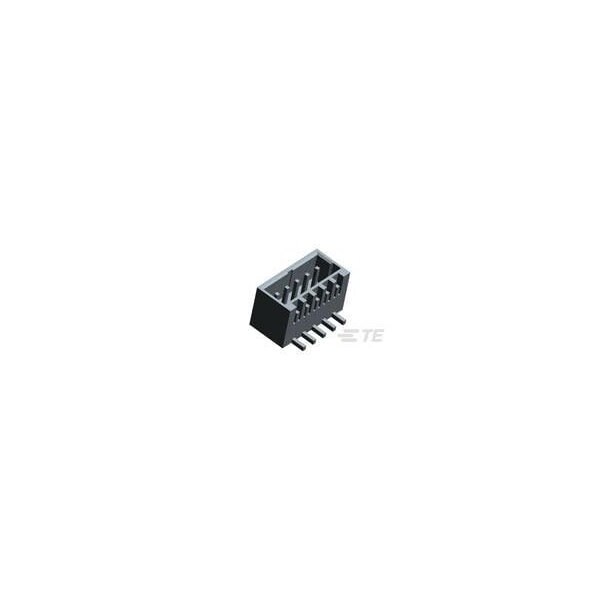

Te Connectivity EMIX CONN. 1.5MM PITCH HDR V/T 8P 5-1775443-8 - main

EMIX CONN. 1.5MM PITCH HDR V/T 8P

  • Mfr # 5-1775443-8

  • Zoro # G900940458

product price:  $0.47
/ea
Sold in multiples of 800 for $376.00

Key Features

Color
Natural
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Current
3 A
Width
0.236 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5-1775443-8
Zoro #
G900940458
UPC #
-
Country of Origin
United States

Dimensions

Width
0.236 in
Height
5 mm
Length
13.5 mm
Contact Plating Thickness
2.54 µm

Details

Item
PCB Mount Header
Color
Natural
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Current
3 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Partially Shrouded
Max. Temp.
105°C
Connection Material
Brass
Terminal Type
Surface Mount
Material
Thermoplastic
Hole Center to Center
1.5 mm
Contact Type
Pin
Number of Contacts
8
Number of Rows
1
Current Rating
3 A
Contact Finish
Tin Plated
Terminal Finish
Bright Tin Plated
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board

Description
