  11. FASTON 110 REC 0.5-1.0MM2 .009X.450 TPBR
This item is Discontinued.

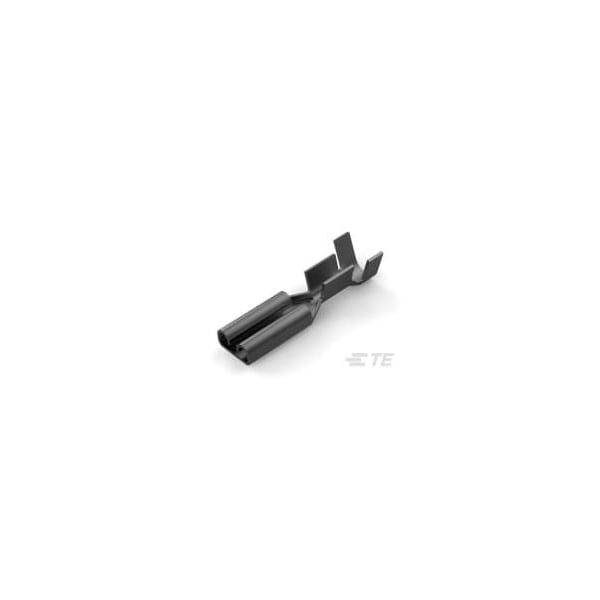

Te Connectivity FASTON 110 REC 0.5-1.0MM2 .009X.450 TPBR 160533-2

FASTON 110 REC 0.5-1.0MM2 .009X.450 TPBR (Discontinued)

  • Mfr # 160533-2
  • Zoro # G100965770
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
160533-2
Zoro #
G100965770
UPC #
-
Country of Origin
China

Dimensions

Wire Size
20 - 17 AWG
Overall Length
.551 in
Wire Insulation Diameter (Max)
.118 in
Mating Tab Thickness
.02 in
Plating Thickness
400 µin
Mating Tab Width
.11 in
Accepts Wire Insulation Diameter Range
.08 - .118 in
Receptacle Stock Thickness
.01 in

Details

Terminal Type
Receptacle
Crimp Type
F-Crimp
Plating Material
Tin
Operating Temperature Range
266 °F
FASTON
Yes
Wire/Cable Type
Discrete Wire
Fully Insulated
No
Barrel Type
Open
Discrete Wire Type
Stranded
Contact Base Material
Brass
Mating Retention Type
Dimple
CSA Certified
Yes
Disconnect Type
Quick Connect
Terminal & Splice Style
Receptacle
UL Rating
Listed
Terminal Orientation
Straight
UL Flammability Rating
UL 94V-2
Wire Insulation Support
With
Voltage (Max)
250 V
Connection Capacity
Single
Insertion Force
Normal
Terminates To
Wire & Cable
