Shop TE CONNECTIVITY

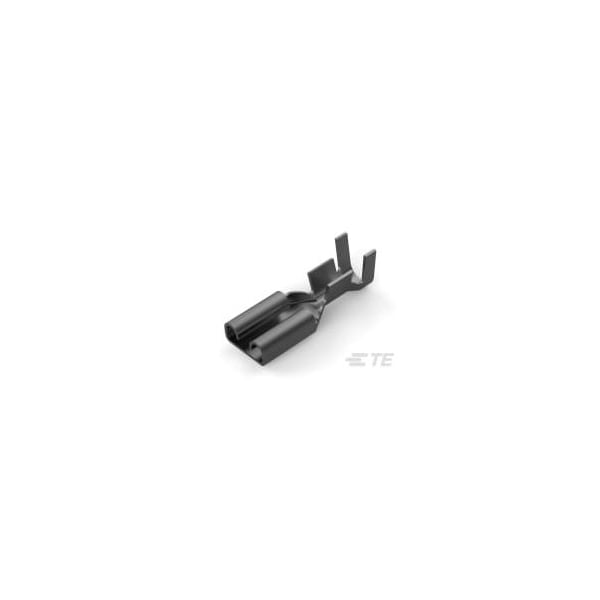

FASTON 187 16-20AWG TPBR

  • Mfr # 170038-2
  • Zoro # G600965232
product price:
$
0.17
/ea
Sold in multiples of 511 for $86.87

Key Features

Wire Size
20 - 16 AWG
Overall Length
.646 in
Terminal Type
Receptacle
Mating Tab Width
.187 in
Terminates To
Wire & Cable
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
170038-2
Zoro #
G600965232
UPC #
-
Country of Origin
Japan

Dimensions

Wire Size
20 - 16 AWG
Overall Length
.646 in
Mating Tab Width
.187 in
Wire Insulation Diameter (Max)
.13 in
Receptacle Stock Thickness
.012 in
Accepts Wire Insulation Diameter Range
.09 - .13 in
Plating Thickness
1 µm
Mating Tab Thickness
.032 in

Details

Terminal Type
Receptacle
Terminates To
Wire & Cable
UL Rating
Listed
Wire/Cable Type
Discrete Wire
Insertion Force
Normal
Barrel Type
Open
Wire Insulation Support
With
Plating Material
Tin
Mating Retention Type
Dimple
Discrete Wire Type
Stranded
Crimp Type
F-Crimp
FASTON
Yes
Contact Base Material
Brass
Disconnect Type
Quick Connect
Terminal Orientation
Straight
CSA Certified
Yes
Fully Insulated
No
Terminal & Splice Style
Receptacle
Connection Capacity
Single
