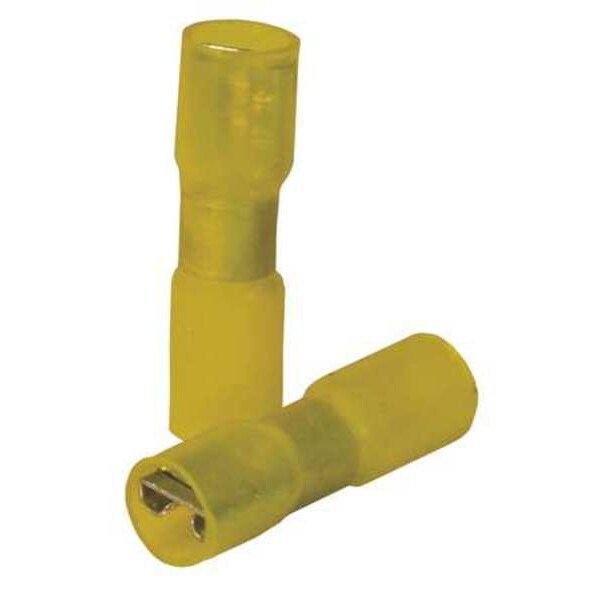

Female Disconnect, Yellow, 12-10AWG, PK25 (Discontinued)
- Mfr # CPGI-B-106-3633-25
- Zoro # G4078033
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CPGI-B-106-3633-25
Zoro #
G4078033
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
1.3 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.112 in
Minimum Wire Size
12 AWG
For Wire Size
10 AWG, 12 AWG
Wire Size Range
12 AWG - 10 AWG
Maximum Wire Size
10 AWG
Strip Length
1/4 in
Tab Width
0.25 in
Barrel Inside Diameter
0.112 in
Tab Thickness
0.032 in
Description
Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Yellow, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 257 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Brazed, Standards EU ELV Directive 2000/53/EC, Barrel Inside Diameter 0.112 in, Insulation Type Heat Shrink
