Shop TE CONNECTIVITY

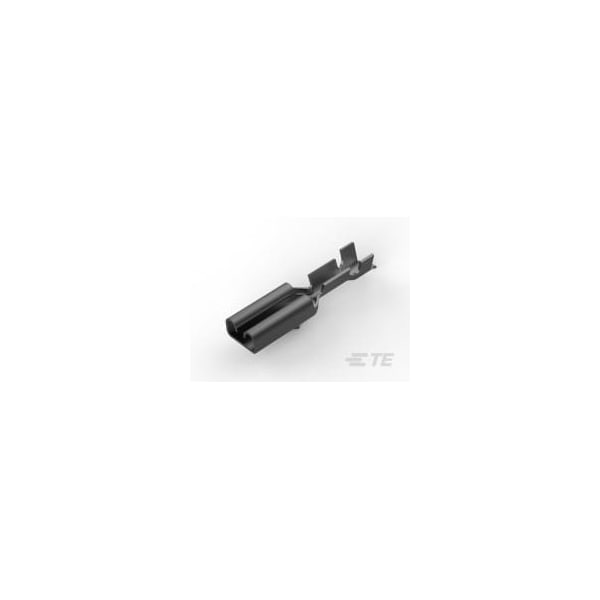

FF 110 REC 24-20AWG TPBR

  • Mfr # 1217281-2

  • Zoro # G100965879

product price:
$
0.18
/ea
Sold in multiples of 9000 for $1,620.00

Key Features

Wire Size
.2-.51 mm2
Overall Length
.55 in
Terminal Type
Receptacle
FASTON
Yes
Accepts Wire Insulation Diameter Range
.0499 - .0799 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1217281-2
Zoro #
G100965879
UPC #
-
Country of Origin
United States

Dimensions

Wire Size
.2-.51 mm2
Overall Length
.55 in
Accepts Wire Insulation Diameter Range
.0499 - .0799 in
Receptacle Stock Thickness
.01 in
Wire Insulation Diameter (Max)
2.03 mm
Mating Tab Thickness
.032 in
Mating Tab Width
.11 in
Locking Lance Height
1.07 mm

Details

Terminal Type
Receptacle
FASTON
Yes
Terminal Orientation
Straight
Connection Capacity
Single
Wire/Cable Type
Regular Wire
Operating Temperature Range
-40 130 °C
Terminates To
Wire & Cable
Crimp Type
F-Crimp
Fully Insulated
No
Contact Base Material
Brass
Disconnect Type
Quick Disconnect Pin
Plating Material
Pre-Tin
Discrete Wire Type
Stranded
Terminal & Splice Style
Receptacle
Mating Retention Type
Dimple
Barrel Type
Open
Insertion Force
Normal
Wire Insulation Support
With

Documents & Resources
