  11. FF 250 REC 0.3-0.8MM2 BR
This item is Discontinued.

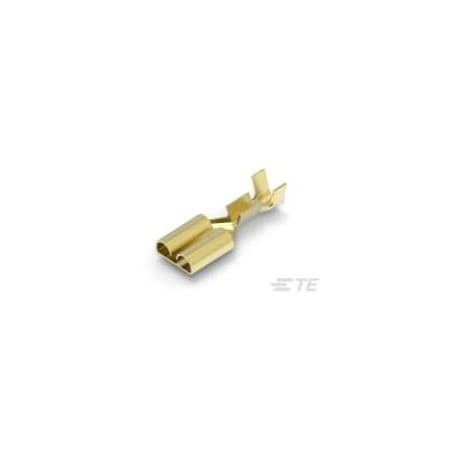

Te Connectivity FF 250 REC 0.3-0.8MM2 BR 280095-1

FF 250 REC 0.3-0.8MM2 BR (Discontinued)

  • Mfr # 280095-1
  • Zoro # G101018109
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
280095-1
Zoro #
G101018109
UPC #
-
Country of Origin
Italy

Dimensions

Wire Size
22 - 18 AWG
Overall Length
.748 in
Accepts Wire Insulation Diameter Range
.091 - .13 in
Mating Tab Thickness
.032 in
Mating Tab Width
.25 in
Receptacle Stock Thickness
.013 in
Wire Insulation Diameter (Max)
.13 in

Details

Terminal Type
Receptacle
Barrel Type
Open
Wire Insulation Support
With
Connection Capacity
Single
FASTON
Yes
Plating Material
Unplated
UL Flammability Rating
UL 94V-2
Contact Base Material
Brass
Terminal & Splice Style
Receptacle
Disconnect Type
Quick Disconnect
Fully Insulated
No
Mating Retention Type
Locking Lance
Voltage (Max)
250 V
Operating Temperature Range
-30 105 °C
Crimp Type
F-Crimp
Wire/Cable Type
Regular Wire
Terminal Orientation
Straight
Terminates To
Wire & Cable
Insertion Force
Normal
