Shop TE CONNECTIVITY

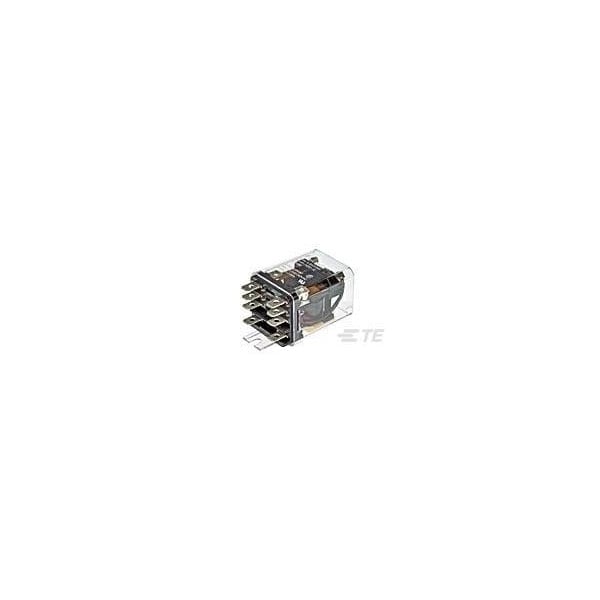

Flange Mount, Panel Mount, General Purpose Relay, 20 A, Solder, Quick Connect

  • Mfr # 3-1423983-5

  • Zoro # G700973793

product price:  $87.89
/ea
Sold in multiples of 2 for $175.78

Key Features

Mounting Style
Flange Mount, Panel Mount
Electrical Connection
Solder, Quick Connect
Coil Voltage
240V AC
Current Rating
20 A
Contact Rating (AC)
20 A @ 240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-1423983-5
Zoro #
G700973793
UPC #
-
Country of Origin
Mexico

Details

Item
General Purpose Relay
Mounting Style
Flange Mount, Panel Mount
Electrical Connection
Solder, Quick Connect
Coil Voltage
240V AC
Current Rating
20 A
Contact Rating (AC)
20 A @ 240V AC
Power Consumption - Relay
3VA
Features
UL Coil Insulation Class B
Number of Poles
2
Contact Material
AgCdO
Contact Limiting Continuous Current
20 A
Contact Rating
20 A
Contact Limiting Breaking Current
20 A
Coil Resistance
7200 Ω
Switching Current
300mA @ 12V
Contact Voltage Rating
240 VAC
Contact Limiting Making Current
20 A
Dielectric Voltage
3750 Vrms Adjacent Contacts; 3750 V Coil and Contact; 1200 Vrms Open Contacts
Coil Type
Monostable, AC
Operating Temp. Range
-45 to 45°C
Contact Limiting Short-Time Current
20 A
Protection Category
RTI
Contact Form
2 Form C (CO)
Number of Pins
8
