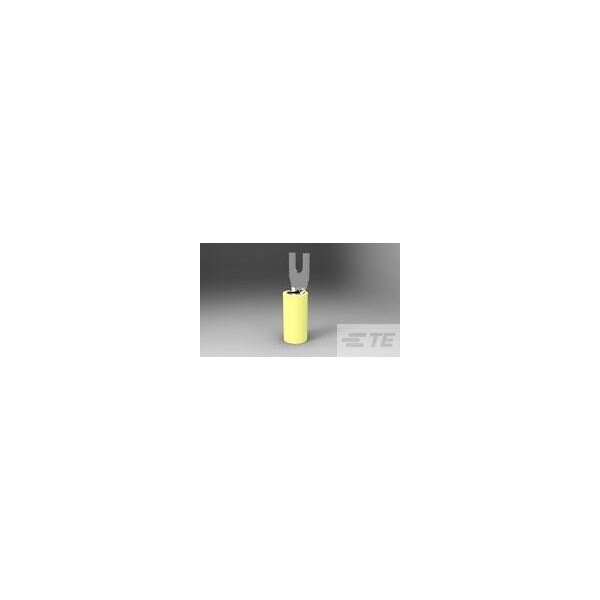

Fork Terminal, #0 Stud Size, 22 AWG, 300 V, Nylon Insulated, Yellow
Mfr # 322001
Zoro # G500926760
product price:Â $2.45
/ea
Sold in multiples of 55 for $134.75
Key Features
Terminal Shape
Fork
Insulation Color
Yellow
Maximum Wire Size
22 AWG
Insulation Type
Nylon
Maximum Voltage
300 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 322001
- Zoro #
- G500926760
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 22 AWG
- Stud Size
- #0
- Overall Length
- 12.09 mm
- Barrel Inside Dia.
- 0.084 in
- Minimum Wire Size
- 26 AWG
Details
- Item
- Fork Terminal
- Terminal Shape
- Fork
- Insulation Color
- Yellow
- Insulation Type
- Nylon
- Maximum Voltage
- 300 V
- Maximum Operating Temperature
- 105 Degrees C
- Wire Type
- Regular Wire
- Seam
- Long, Closed Barrel
- Insulation Dia
- 1.27 to 2.08 mm
- Terminal Orientation
- Straight
- Contact Plating Material
- Copper, Tin
- Minimum Operating Temperature
- -40 Degrees C
- Termination Style
- Crimp
- Standards
- UL & CSA Listed
- Contact Material
- Copper
- Insulation Coverage
- Partial Coverage
