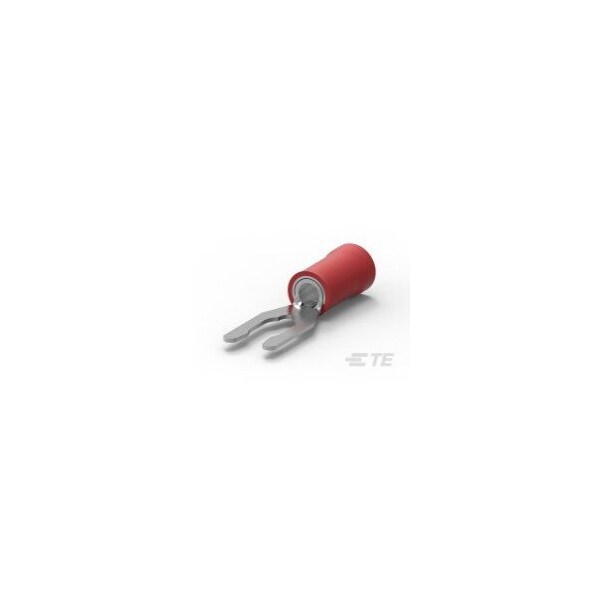

Fork Terminal, #6 Stud Size, 16 AWG, 300 V, Nylon Insulated, Red
Mfr # 52409-2
Zoro # G600975712
product price:Â
$
0.56
/ea
Sold in multiples of 200 for $112.00
Key Features
Insulation Color
Red
Maximum Wire Size
16 AWG
Insulation Type
Nylon
Stud Size
#6
Maximum Voltage
300 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 52409-2
- Zoro #
- G600975712
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 16 AWG
- Stud Size
- #6
- Overall Length
- 0.933 in
- Minimum Wire Size
- 22 AWG
Details
- Item
- Fork Terminal
- Insulation Color
- Red
- Insulation Type
- Nylon
- Maximum Voltage
- 300 V
- Maximum Operating Temperature
- 221 Degrees F
- Features
- Wire Insulation Support
- Seam
- Standard, Closed Barrel
- Wire Type
- Solid or Stranded, Regular Wire
- Terminal Orientation
- Offset, Straight
- Contact Plating Material
- Phosphor Bronze, Tin
- Insulation Dia
- 0.105 to 0.14 in
- Insulation Coverage
- Partial Coverage
- Standards
- UL & CSA Listed
- Terminal Shape
- Spring Fork
- Minimum Operating Temperature
- 0 Degrees F
- Termination Style
- Crimp
- Contact Material
- Copper
