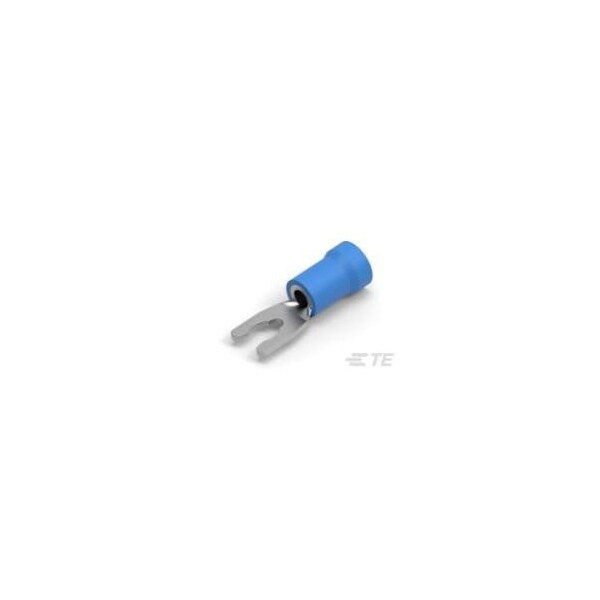

Fork Terminal, #6 Stud Size, 2 mm², 600 V, Vinyl, PVC Insulated, Blue, Red
Mfr # 52955
Zoro # G700927338
product price: $0.49
/ea
Sold in multiples of 200 for $98.00
Key Features
Terminal Shape
Spring Fork
Insulation Color
Blue, Red
Minimum Wire Size
16 AWG
Insulation Type
PVC
Maximum Voltage
600 V
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
52955
Zoro #
G700927338
UPC #
-
Country of Origin
United States
Dimensions
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Stud Size
#6
Barrel Inside Dia.
0.195 in
Overall Length
0.811 in
Details
Item
Fork Terminal
Terminal Shape
Spring Fork
Insulation Color
Blue, Red
Insulation Type
PVC
Maximum Voltage
600 V
Wire Type
Solid or Stranded, Regular Wire
Features
Wire Insulation Support
Seam
Standard, Closed Barrel
Insulation Dia
0.118 to 0.193 in
Contact Plating Material
Brass, Tin
Terminal Orientation
Straight
Termination Style
Crimp
Maximum Operating Temperature
105 Degrees C
Standards
UL &CSA Listed
Minimum Operating Temperature
0 Degrees C
Contact Material
Brass
Insulation Coverage
Partial Coverage
