Product Information
MFR #
1-1734592-3
Zoro #
G801040288
UPC #
-
Country of Origin
China
Dimensions
Width
0.2 in
Height
2.05 mm
Length
11.93 mm
Contact Plating Thickness
0.025 µm
Details

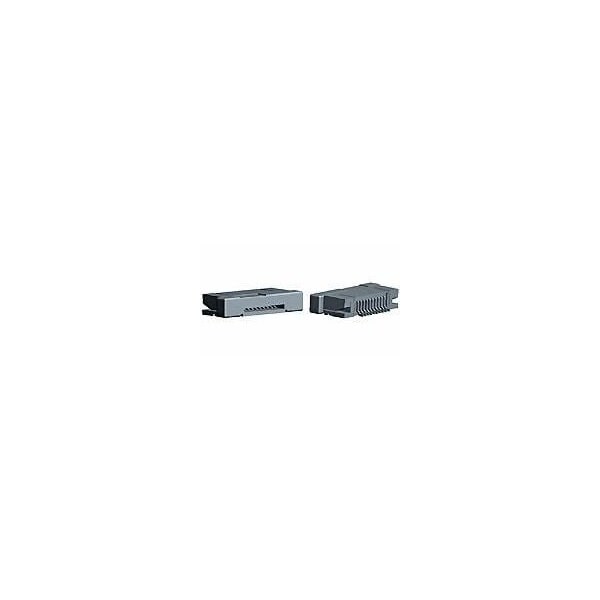

Item
Connector
Max. Temp.
85°C
Max. Voltage
250V AC
Application
Signal
Series
FPC
Material
Liquid Crystal Polymer
Connection Material
Phosphor Bronze
Connector Type
Receptacle
Color
Natural
Terminal Type
Surface Mount
Hole Center to Center
0.5 mm
Contact Type
Socket
Current Rating
0.5 A
Connector Terminates To
Flexible Printed Circuit; Printed Circuit Board
Terminal Finish
Gold Plated
Number of Rows
1
Contact Finish
Gold Plated
Number of Contacts
13
