Shop TE CONNECTIVITY

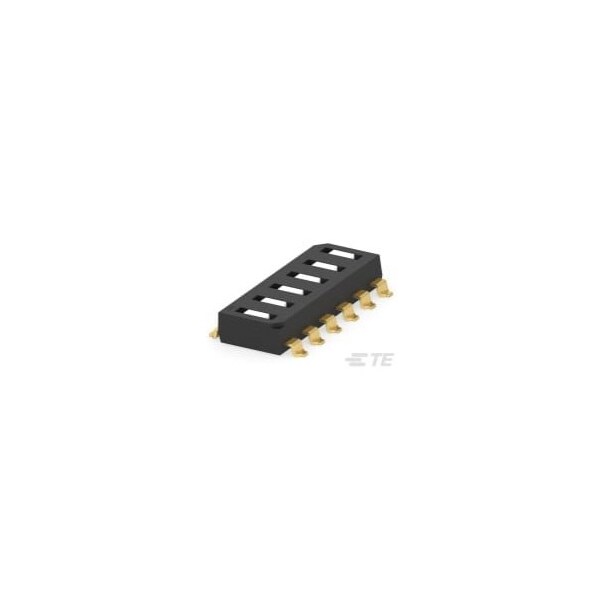

GDS06S04=DIP SW SLIDE SMT

  • Mfr # 1-1825006-1
  • Zoro # G600965805
product price:
$
2.99
/ea
Sold in multiples of 60 for $179.40

Key Features

Height
.106 in
Length
.594 in
Switch Type
DIP
Seal Type
Tape
Termination Style
Outside L
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1825006-1
Zoro #
G600965805
UPC #
-
Country of Origin
China

Dimensions

Height
.106 in
Length
.594 in
Termination Post Length
.169 in
Contact Mating Area Plating Thickness
10µin

Details

Switch Type
DIP
Seal Type
Tape
Termination Style
Outside L
Number of Switches
6
Actuator Style
Slide
Contact Current Rating
.1 A
Housing Color
Black
Solder Tail Contact Plating
Gold over Nickel
Housing Material
Polyphenylene Sulfide (PPS)
Product Type
Switch
Voltage Rating
50 VDC
Sealed
Yes
Auto-Insertable
Yes
Contact Mating Area Plating Material
Gold
Contact Base Material
Copper Alloy
Operating Temperature Range
-30 to 85°C
UL Flammability Rating
UL 94V-0
Low Profile
Yes
Number of Positions
6
Centerline
.1 in
Mounting Type
Surface Mount
Configuration (Pole-Throw)
Single Pole - Single Throw
Actuator Color
White
Mounting Angle
Vertical

Documents & Resources
