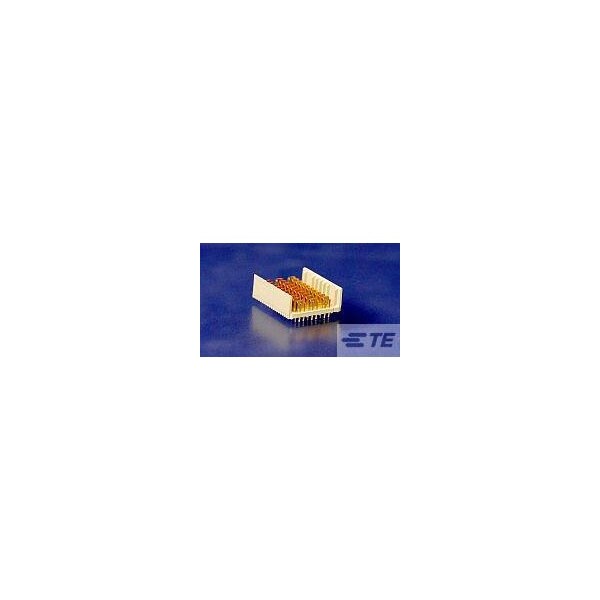

Hard Metric Connectors Hmzd 3Pair Hdr Assy 25Mm Mod (Discontinued)
- Mfr # 6469083-2
- Zoro # G805949358
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
6469083-2
Zoro #
G805949358
UPC #
-
Country of Origin
China
Dimensions
Length
24.9 mm
Contact Plating Thickness
0.76 µm
Details
Color
Gray
Current
0.7 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Connector Type
Header
Material
Glass-Filled Polyester
Features
With Grounding Contact
Application
Signal
Connection Material
Phosphor Bronze
Terminal Type
Press-Fit
Hole Center to Center
2.5 mm
Max. Temp.
105°C
Contact Finish
Gold Plated
Contact Type
Pin
Number of Contacts
60
Number of Rows
6
Current Rating
0.7 A
Terminal Finish
Tin over Nickel
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
