  11. Header, 24 AWG, 250V AC/DC, Power

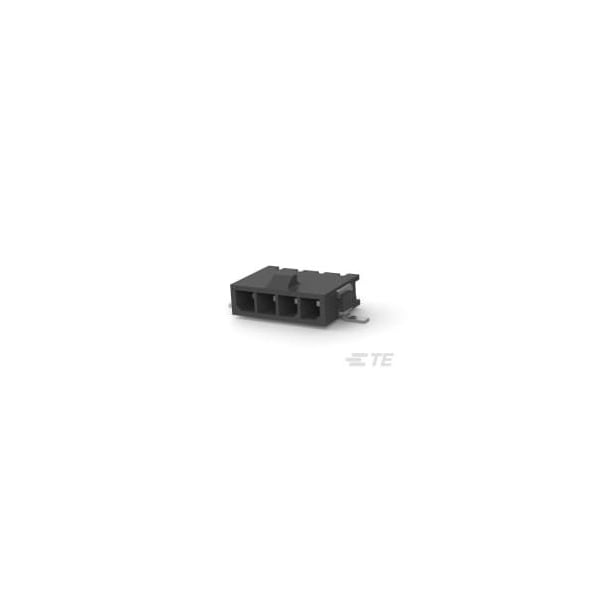

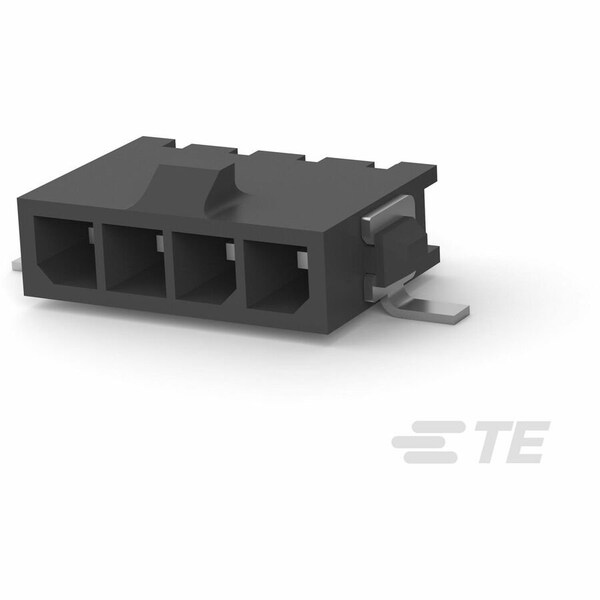

Te Connectivity Header, 24 AWG, 250V AC/DC, Power 2-1445057-4 - main

Header, 24 AWG, 250V AC/DC, Power

  • Mfr # 2-1445057-4

  • Zoro # G301048784

product price: $1.15
/ea
Sold in multiples of 215 for $247.25

Key Features

Color
Black
Min. Single Wire Size
24 AWG
Insulation Material
High Temperature Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2-1445057-4
Zoro #
G301048784
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
24 AWG
Max. Insulation Dia.
1.52 in
Max. Single Wire Size
20 AWG
Contact Plating Thickness
2.54 µm
Minimum Single Wire Size
24 AWG
Maximum Single Wire Size
20 AWG

Details

Item
Header
Color
Black
Insulation Material
High Temperature Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
Current
5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Material
High Temperature Nylon
Terminal Type
Surface Mount
Number of Rows
1
Contact Finish
Tin Plated
Hole Center to Center
3 mm
Current Rating
5 A
Contact Type
Pin
Number of Contacts
4
For Use With
Receptacle Housing
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0

Description
