Shop TE CONNECTIVITY

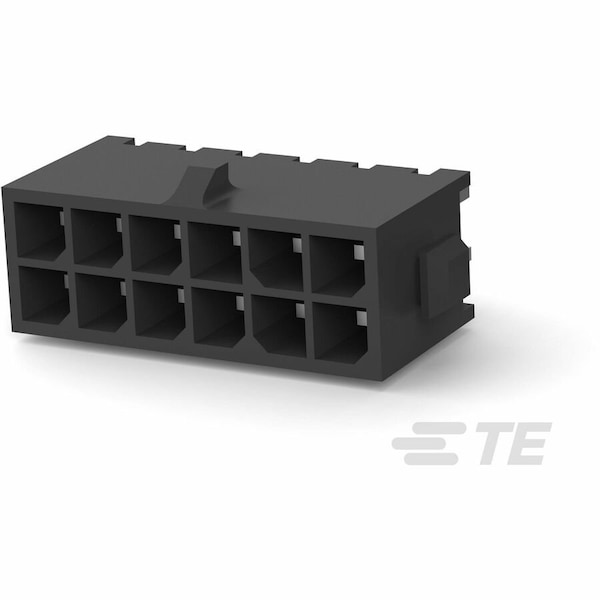

Header, 250V AC/DC, Power, 8.67 mm

  • Mfr # 4-794630-2

  • Zoro # G801048925

product price:
$
1.35
/ea
Sold in multiples of 60 for $81.00

Key Features

Type
Header
Color
Black
Insulation Material
Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4-794630-2
Zoro #
G801048925
UPC #
-
Country of Origin
China

Dimensions

Width
8.67 mm
Height
9.24 mm
Length
18.86 mm
Contact Plating Thickness
2.54 to 7.62 µm

Details

Item
Header
Type
Header
Color
Black
Insulation Material
Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
Current
5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Material
Nylon
Terminal Type
Through Hole - Solder
Number of Contacts
12
Number of Rows
2
Contact Finish
Tin Plated
Hole Center to Center
3 mm
Current Rating
5 A
Contact Type
Pin
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Termination Style
Through Hole - Solder

Documents & Resources
