Product Information
MFR #
281696-4
Zoro #
G501041301
UPC #
-
Country of Origin
China
Details
Item

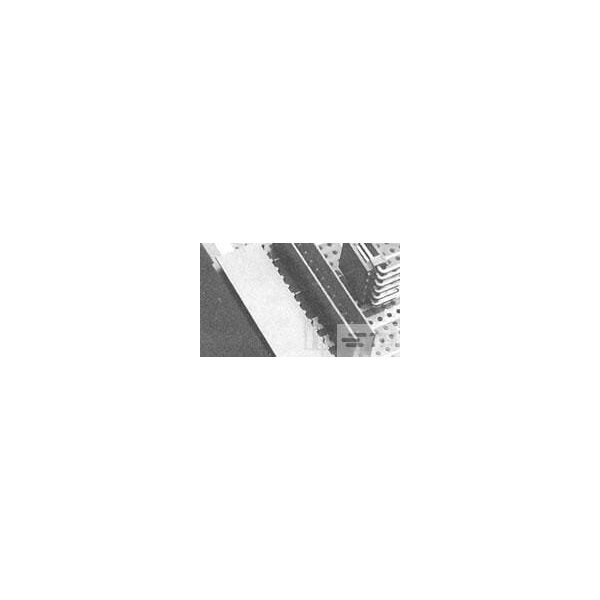

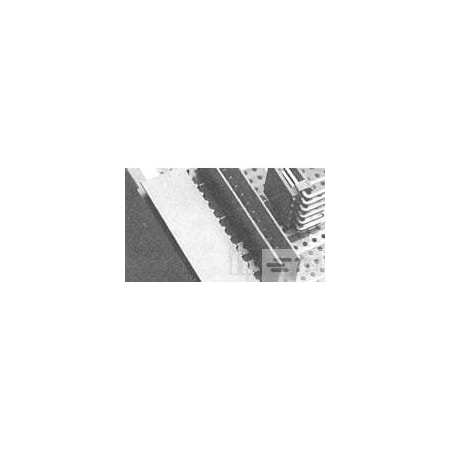

PCB Mount Header
Max. Temp.
105°C
Standards
UL E28476; CSA LR7189
Features
Shrouded
Color
Blue
Material
High Temperature Thermoplastic
Contact Type
Pin
Hole Center to Center
2.54 mm
Connector Terminates To
Printed Circuit Board
Connection Material
Phosphor Bronze
Flammability Rating
UL 94 V-0
Contact Finish
Gold Plated
Current Rating
3 A
Terminal Type
Through Hole; Insulation Displacement Crimp
Number of Contacts
4
Terminal Finish
Tin-Lead Plated
Number of Rows
1
