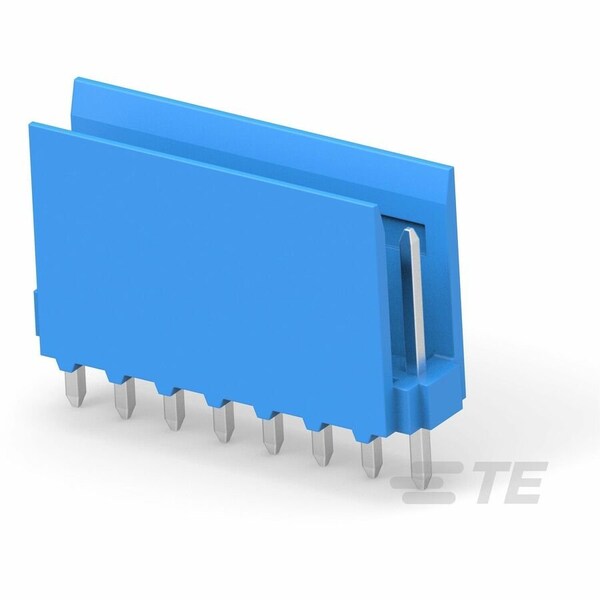

HEADER HE14 STRAIGHT 8 P
Mfr # 281695-8
Zoro # G301041303
product price: $1.49
/eaSold in multiples of 57 for $84.93
Key Features
Max. Temp.
105°C
Standards
CSA LR7189; UL E28476
Features
Shrouded
Color
Blue
Material
High Temperature Thermoplastic
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
281695-8
Zoro #
G301041303
UPC #
-
Country of Origin
China
Details
Item
PCB Mount Header
Max. Temp.
105°C
Standards
CSA LR7189; UL E28476
Features
Shrouded
Color
Blue
Material
High Temperature Thermoplastic
Connection Material
Phosphor Bronze
Terminal Type
Through Hole; Insulation Displacement Crimp
Number of Contacts
8
Number of Rows
1
Flammability Rating
UL 94 V-0
Current Rating
3 A
Hole Center to Center
2.54 mm
Contact Finish
Tin Plated
Terminal Finish
Tin Plated; Tin-Lead Plated
Connector Terminates To
Printed Circuit Board
Contact Type
Pin
Description
