This item is Discontinued.

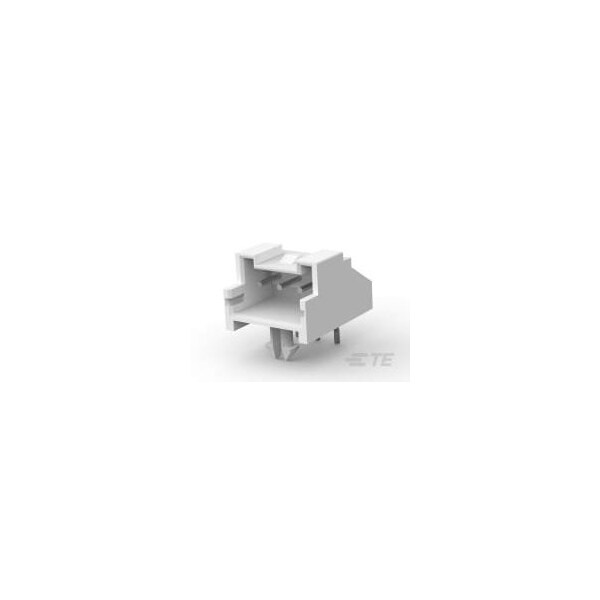

Te Connectivity Header Housing Assy EP 2.5 RA 3 Pos. 1744426-3

Header Housing Assy EP 2.5 RA 3 Pos. (Discontinued)

  • Mfr # 1744426-3
  • Zoro # G200956814
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1744426-3
Zoro #
G200956814
UPC #
-
Country of Origin
China

Dimensions

Height
7.6 mm
Length
12.5 mm
Contact Plating Thickness
2.032 µm
Min. Single Wire Size
26 AWG
Max. Single Wire Size
20 AWG

Details

Item
PCB Mount Header
Material
Nylon
Number of Rows
1
Features
Shrouded
Application
Power
Color
White
For Use With
Receptacle Assembly
Terminal Type
Solder
Connector Terminates To
Printed Circuit Board
Wire Type
Discrete
Terminal Finish
Bright Tin Plated
Max. Voltage
250V AC
Contact Type
Pin
Current Rating
4.5 A
Number of Contacts
3
Hole Center to Center
2.5 mm
Contact Finish
Bright Tin Plated
Max. Temp.
105°C
Connection Material
Copper Alloy
Flammability Rating
UL 94 V-0
