  9. Headers & Wire Housings 13P Mta156 Conn Assy 22Awg Lf

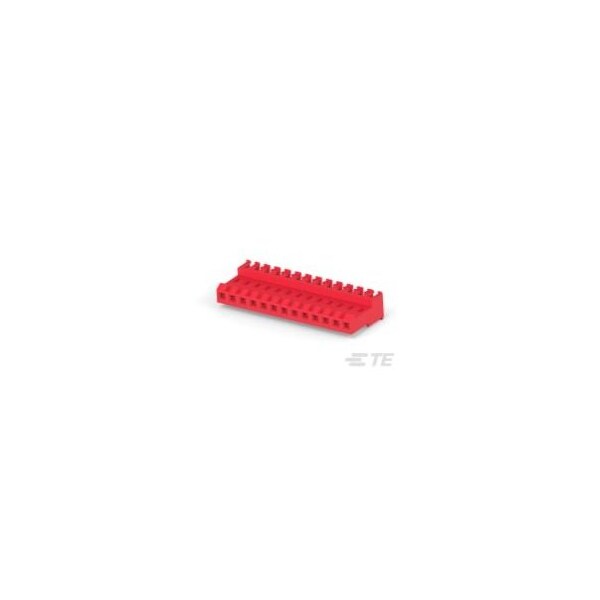

Te Connectivity Headers & Wire Housings 13P Mta156 Conn Assy 22Awg Lf 4-640601-3 - main

Headers & Wire Housings 13P Mta156 Conn Assy 22Awg Lf

  • Mfr # 4-640601-3

  • Zoro # G905911101

product price: $1.35
/ea
Sold in multiples of 3500 for $4,725.00

Key Features

Number of Rows
1
Length
55.47 mm
Color
Red
Material
Nylon
Height
9.78 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4-640601-3
Zoro #
G905911101
UPC #
-
Country of Origin
United States

Dimensions

Length
55.47 mm
Height
9.78 mm
Max. Insulation Dia.
0.095 in
Min. Single Wire Size
0.3 mm2
Contact Plating Thickness
2.03 to 5.08 µm
Max. Single Wire Size
0.4 mm2

Details

Item
Connector
Number of Rows
1
Color
Red
Material
Nylon
Standards
CSA Certified; UL E28476; UL Recognized
Application
Power
For Use With
MTA .156 Header
Wire Connector Style
Feed Through
Hole Center to Center
3.96 mm
Contact Type
Socket
Current Rating
7 A
Contact Finish
Matte Tin Plated
Connection Material
Copper Alloy
Connector Type
Receptacle
Terminal Finish
Matte Tin Plated
Connector Terminates To
Wire & Cable
Max. Voltage
600V AC
Flammability Rating
UL 94 V-2
Terminal Type
Insulation Displacement Crimp
Wire Type
Discrete; Stranded
Max. Temp.
105°C
Number of Contacts
13
