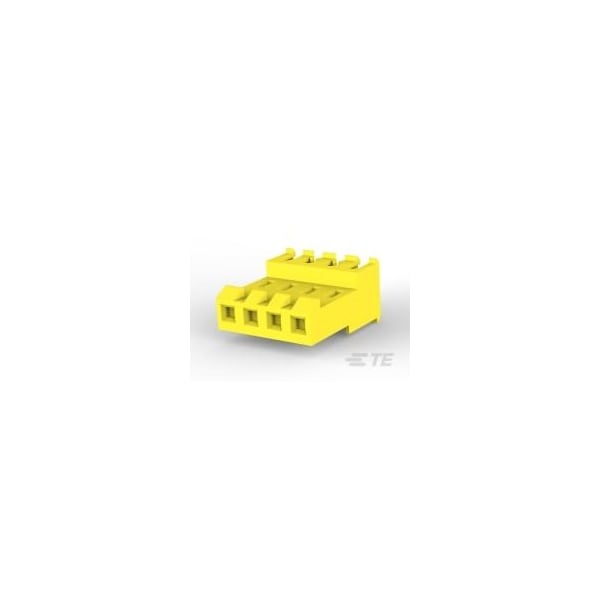

Te Connectivity Headers & Wire Housings Feed Thru Wo Tab 4P L.R. Yellow 20 Awg 3-640600-4 - main

Headers & Wire Housings Feed Thru Wo Tab 4P L.R. Yellow 20 Awg

  • Mfr # 3-640600-4

  • Zoro # G605910725

product price: $0.61
/ea
Sold in multiples of 135 for $82.35

Key Features

Number of Rows
1
Height
9.78 mm
For Use With
MTA .156 Header
Standards
CSA Certified; UL E28476; UL Recognized
Color
Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-640600-4
Zoro #
G605910725
UPC #
-
Country of Origin
China

Dimensions

Height
9.78 mm
Length
15.85 mm
Max. Insulation Dia.
0.095 in
Contact Plating Thickness
2.03 µm

Details

Item
Connector Assembly
Number of Rows
1
For Use With
MTA .156 Header
Standards
CSA Certified; UL E28476; UL Recognized
Color
Yellow
Application
Power
Material
Nylon
Wire Range
20 AWG
Terminal Type
Insulation Displacement Crimp
Contact Finish
Matte Tin Plated
Contact Type
Socket
Current Rating
7 A
Terminal Finish
Tin Plated
Connection Material
Copper Alloy
Flammability Rating
UL 94 V-2
Connector Terminates To
Printed Circuit Board; Wire & Cable
Number of Contacts
4
Max. Temp.
105°C
Wire Type
Discrete; Stranded
Max. Voltage
600V AC
Hole Center to Center
3.96 mm
