  9. Headers & Wire Housings Feed Thru Wo Tab 6P L.R. Yellow 20 Awg

This item is Discontinued.

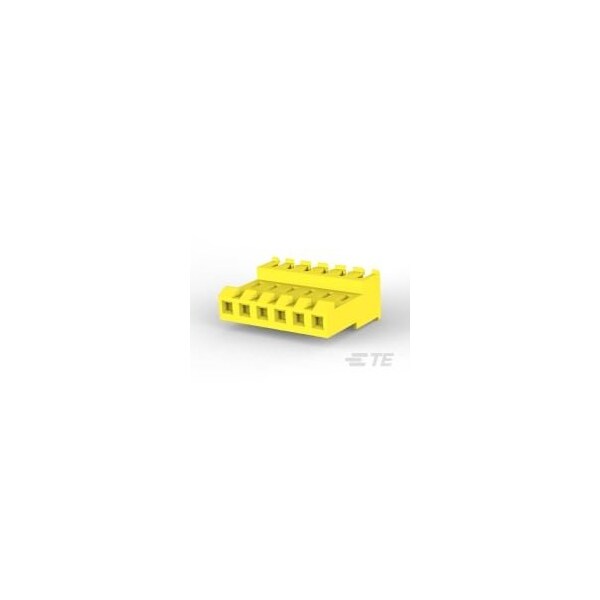

Te Connectivity Headers & Wire Housings Feed Thru Wo Tab 6P L.R. Yellow 20 Awg 3-640600-6

Headers & Wire Housings Feed Thru Wo Tab 6P L.R. Yellow 20 Awg (Discontinued)

  • Mfr # 3-640600-6
  • Zoro # G405910697
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-640600-6
Zoro #
G405910697
UPC #
-
Country of Origin
China

Dimensions

Length
23.77 mm
Height
9.78 mm
Contact Plating Thickness
2.03 µm
Max. Insulation Dia.
2.41 mm

Details

Item
Connector Assembly
Number of Rows
1
Color
Yellow
For Use With
MTA .156 Header
Material
Nylon
Standards
CSA Certified; UL E28476; UL Recognized
Application
Power
Hole Center to Center
3.96 mm
Wire Range
20 AWG
Connector Terminates To
Printed Circuit Board; Wire & Cable
Terminal Type
Insulation Displacement Crimp
Contact Finish
Matte Tin Plated
Max. Voltage
600V AC
Max. Temp.
105°C
Current Rating
7 A
Terminal Finish
Tin Plated
Contact Type
Socket
Number of Contacts
6
Wire Type
Discrete; Stranded
Connection Material
Copper Alloy
Flammability Rating
UL 94 V-2
