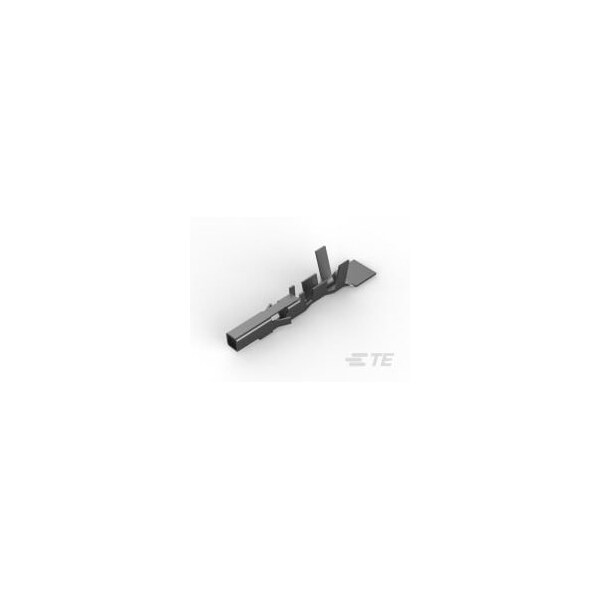

Headers & Wire Housings Socket 22-18Awg Reel Of 3500 (Discontinued)
- Mfr # 794956-1
- Zoro # G405917054
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
794956-1
Zoro #
G405917054
UPC #
-
Country of Origin
China
Dimensions
Min. Single Wire Size
22 AWG
Max. Single Wire Size
18 AWG
Max. Insulation Dia.
3.1 mm
Contact Plating Thickness
2.54 µm
Details
Item
Contact
Max. Voltage
600V AC
Application
Power
Wire Type
Discrete
Max. Temp.
105°C
Terminal Type
Crimp
Connection Material
Brass
Standards
CSA Certified; UL E28476; UL Recognized
Connector Terminates To
Wire & Cable
Current Rating
9 A
Terminal Finish
Pre-Tin Plated
Contact Finish
Pre-Tin Plated
Contact Type
Socket
Description
