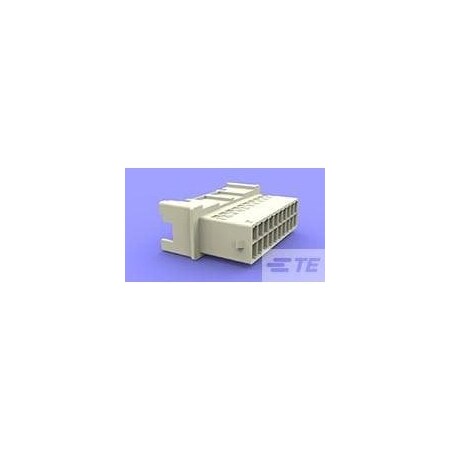

HSG REC PANEL MOUNT DUALROW EP2.5 (Discontinued)
- Mfr # 3-1969594-0
- Zoro # G200956111
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
3-1969594-0
Zoro #
G200956111
UPC #
-
Country of Origin
China
Dimensions
Width
0.406 in
Height
19.97 mm
Length
1.591 in
Max. Single Wire Size
22 AWG
Min. Single Wire Size
26 AWG
Max. Insulation Dia.
0.067 in
Details
Item
Connector
Color
White
Number of Rows
2
For Use With
1969540 Plug Housing
Material
Nylon
Application
Power, Signal
Connector Type
Receptacle
Number of Contacts
30
Flammability Rating
UL 94 V-0
Terminal Type
Crimp
Connector Terminates To
Wire & Cable
Hole Center to Center
2.5 mm
Current Rating
3 A
Max. Voltage
250V AC
Max. Temp.
105°C
Contact Type
Pin
Description
