  11. IDC LOW PRO HDR 26P VERT SHT LAT BLK
This item is Discontinued.

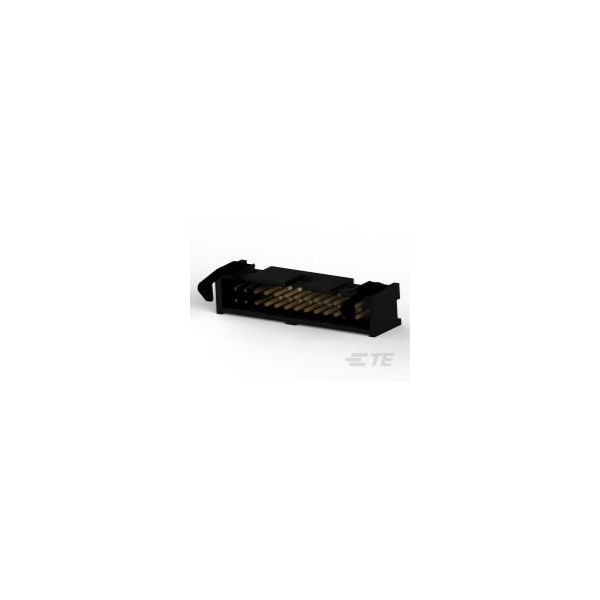

Te Connectivity IDC LOW PRO HDR 26P VERT SHT LAT BLK 1761608-9

IDC LOW PRO HDR 26P VERT SHT LAT BLK (Discontinued)

  • Mfr # 1761608-9
  • Zoro # G600939592
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1761608-9
Zoro #
G600939592
UPC #
-
Country of Origin
China

Dimensions

Height
9.19 mm
Length
1.6 in
Contact Plating Thickness
0.762 µm

Details

Item
Connector
Type
Header
Color
Black
Insulation Material
PBT
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
2.54 mm
Connector Type
Header
Connection Material
Phosphor Bronze
Terminal Type
Through Hole
Material
PBT
Max. Temp.
105°C
For Use With
AMP-Latch Receptacle
Features
With Daisy Chain and Ejection Latches
Current Rating
1 A
Number of Contacts
26
Contact Type
Pin
Number of Rows
2
Contact Finish
Gold Flash over Palladium Nickel
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
