This item is Discontinued.

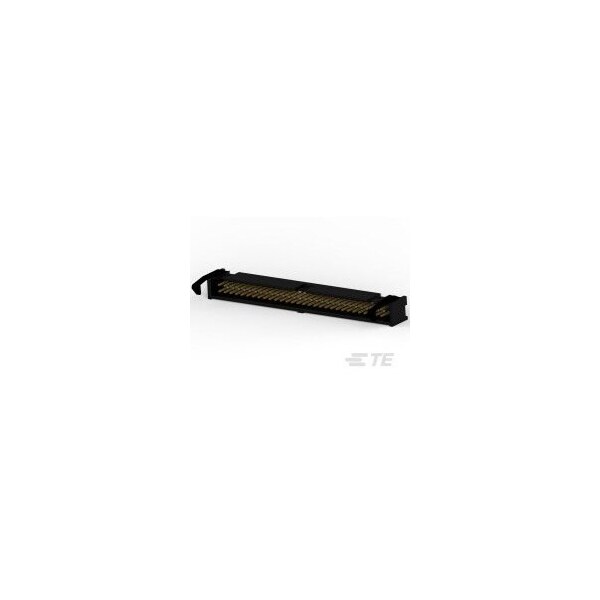

Te Connectivity IDC LOW PRO HDR 60P VERT LG LA 1-1761606-6

IDC LOW PRO HDR 60P VERT LG LA (Discontinued)

Mfr # 1-1761606-6
Zoro # G100937074

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Specifications

Product Information

MFR #

1-1761606-6

Zoro #

G100937074

UPC #

Country of Origin

China

Dimensions

Height

9.19 mm

Length

3.3 in

Contact Plating Thickness

0.762 µm

Details

Item

Connector

Type

Header

Color

Black

Insulation Material

PBT

Max. Voltage

250V AC

Maximum Voltage

250 V AC

Application

Signal

Current

1 A

Maximum Operating Temperature

105 Degrees C

UL 94 Flammability Rating

V-0

Material

PBT

Connector Type

Header

For Use With

AMP-Latch Receptacle

Features

With Daisy Chain and Ejection Latches

Connection Material

Phosphor Bronze

Hole Center to Center

2.54 mm

Max. Temp.

105°C

Terminal Type

Through Hole

Contact Type

Number of Rows

Number of Contacts

Current Rating

1 A

Contact Finish

Gold Flash over Palladium Nickel

Flammability Rating

UL 94 V-0

Terminal Finish

Tin Plated

Connector Terminates To

Printed Circuit Board

Description

Documents & Resources

Technical Guide Opens PDF in new window
