This item is Discontinued.

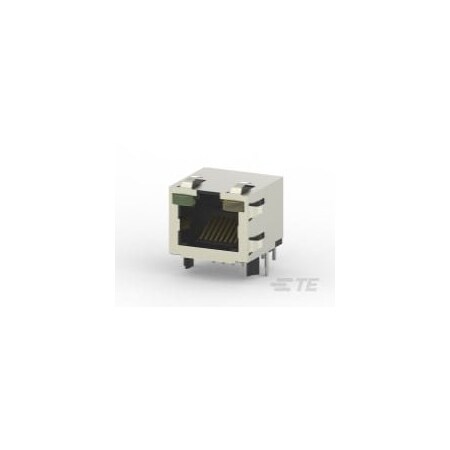

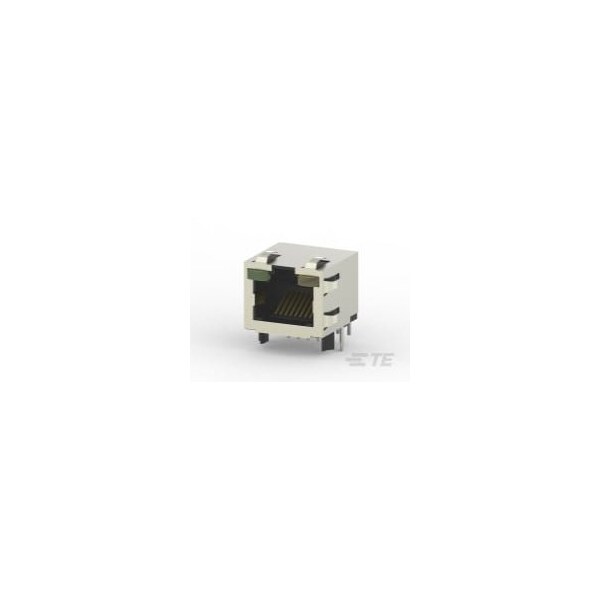

IMJ 1X1 PNL GRD LED(Y/G) S (Discontinued)
-
Mfr #
2-406549-4
-
Zoro #
G701033625
Shop for similar items
Specifications
Contact Mating Area Plating Material Thickness
15µin
PCB Thickness (Recommended)
.062 in
Connector Mounting Type
Panel
Grounding Options
PCB and Panel Ground
Latch Orientation
Inverted - Latch Up
Modular Jack & Plug Interface Type
RJ45
Termination Method to Printed Circuit Board
Through Hole - Solder
Number of PCB Ground Tabs
2
PCB Mount Orientation
Right Angle
Centerline (Pitch)
.04 in
Connector Product Type
Connector Assembly
Housing Material
High Temperature Thermoplastic
Panel Ground Location
Top and Side, Top
Contact Base Material
Phosphor Bronze
PCB Termination Area Plating Finish
Matte
PCB Ground Tab Location
-3.43 mm, .135 in
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
LED Color (Top Right)
Yellow
Number of Contacts Loaded
8
Connector Contact Density
Standard
LED Color (Top Left)
Green
UL Flammability Rating
UL 94V-0
Number of Panel Ground Tabs
2
Connectors & Connector Components Type
Connector
Contact Mating Area Plating Material
Gold
Operating Temperature Range
-40 to 185°F
Performance Category
Cat 5
Circuit Application
Signal
Port Configuration
Single Port
Shield Plating Material
Tin
Shield Material
Copper Alloy
Port Matrix Configuration
1 x 1
PCB Contact Termination Area Plating Material
Tin
Contact Current Rating (Max)
1.5 A, .2 A
Contact Underplating Material
Nickel
Connector & Contact Terminates To
Printed Circuit Board
Panel Mount Feature
Without
