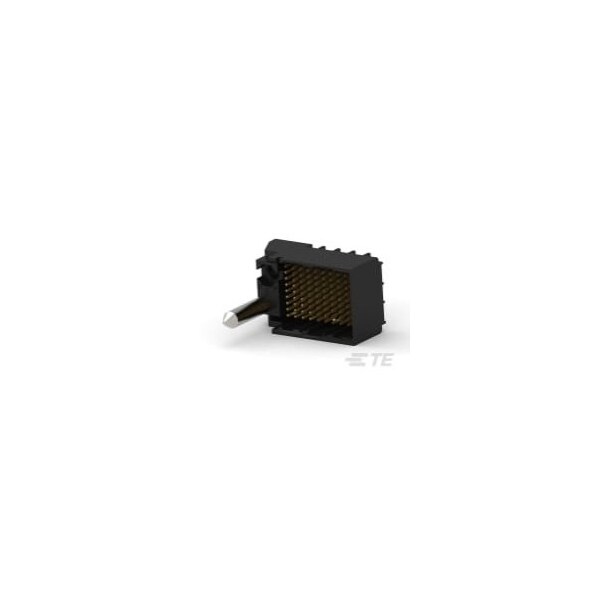

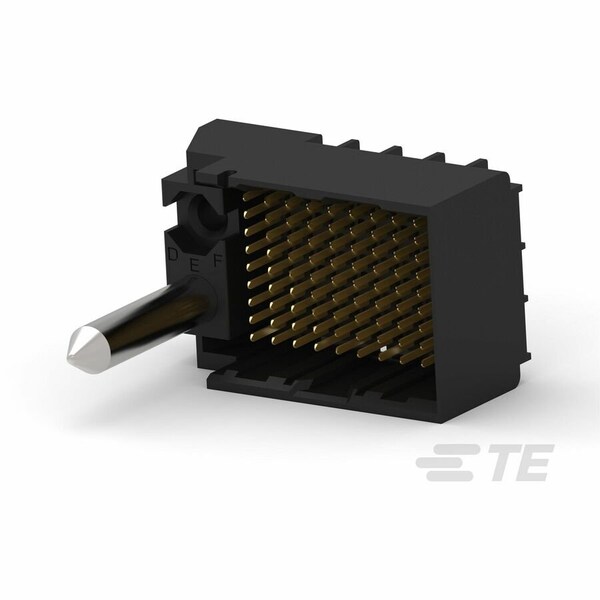

Te Connectivity IMP100S H V3P10C LG REW39 4.5 2007779-1 - main

IMP100S H V3P10C LG REW39 4.5

  • Mfr # 2007779-1

  • Zoro # G701069143

product price:  $10.99
/ea
Sold in multiples of 7 for $76.93

Key Features

For Use With
Receptacle Assembly
Length
26.9 mm
Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Signal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2007779-1
Zoro #
G701069143
UPC #
-
Country of Origin
China

Dimensions

Length
26.9 mm
Width
0.657 in
Height
24.6 mm
Contact Plating Thickness
0.76 µm
Hole Dia.
0.015 in

Details

Item
Connector
For Use With
Receptacle Assembly
Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Signal
Standards
CSA Certified; UL E28476; UL Recognized
Material
Glass-Filled Liquid Crystal Polymer
Color
Black
Contact Finish
Gold Plated
Current Rating
0.75 A
Number of Contacts
90
Terminal Finish
Matte Tin Plated
Contact Type
Pin
Connector Type
Header
Flammability Rating
UL 94 V-0
Hole Center to Center
1.9 mm
Connector Terminates To
Printed Circuit Board
Number of Rows
9
Terminal Type
Through Hole - Press-Fit
Connection Material
Copper Alloy

Description
