Product Information
MFR #
2057404-1
Zoro #
G201064556
UPC #
-
Country of Origin
China
Dimensions
Width
0.791 in
Height
10.9 mm
Length
26.6 mm
Hole Dia.
0.015 in
Contact Plating Thickness
0.762 µm
Details

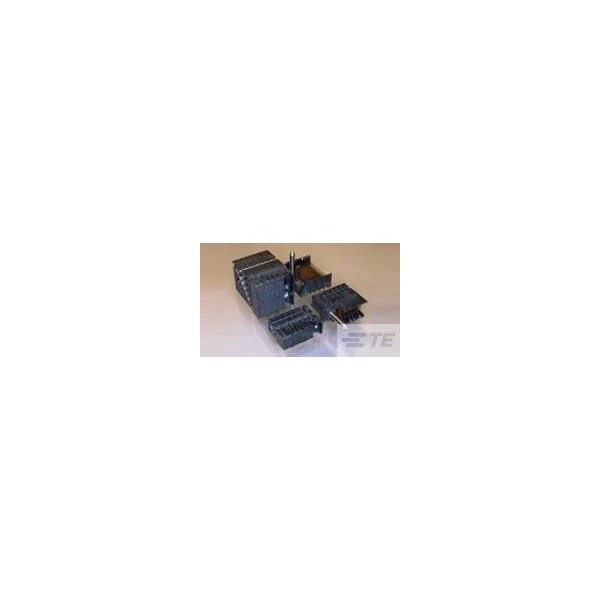

Item
Connector
Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Signal
Standards
CSA Certified; UL E28476; UL Recognized
Material
Glass-Filled Liquid Crystal Polymer
Color
Black
Current Rating
0.75 A
Flammability Rating
UL 94 V-0
Number of Rows
6
Connection Material
Copper Alloy
Contact Finish
Gold Plated
Terminal Finish
Matte Tin Plated
Terminal Type
Through Hole - Press-Fit
Hole Center to Center
1.9 mm
Number of Contacts
60
Connector Terminates To
Printed Circuit Board
Connector Type
Receptacle
Contact Type
Socket
