This item is Discontinued.

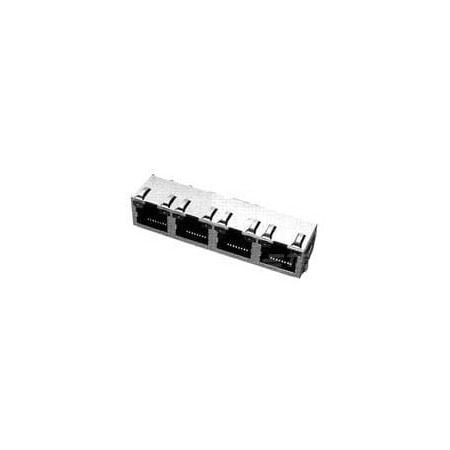

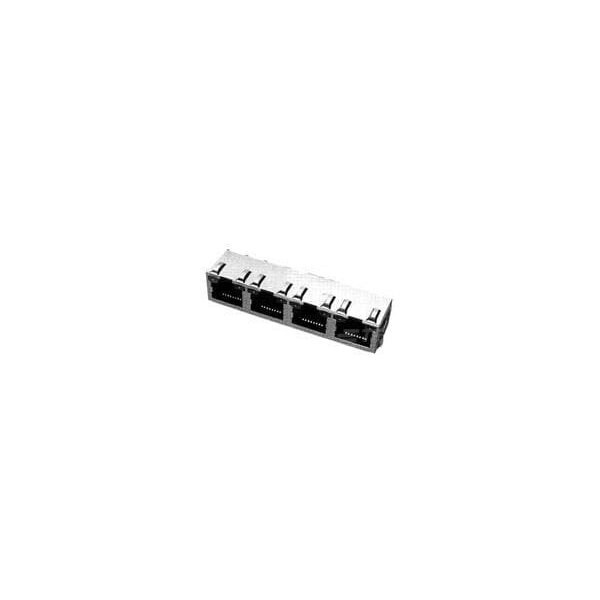

Te Connectivity INV MJ 1X4 PNL GRD 5406544-2

INV MJ 1X4 PNL GRD (Discontinued)

  • Mfr # 5406544-2
  • Zoro # G701034714
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5406544-2
Zoro #
G701034714
UPC #
-
Country of Origin
Unknown

Dimensions

Contact Mating Area Plating Material Thickness
50µin
Connector Height
.525 in
PCB Tail Length
.1 in

Details

Shielded
Yes
Number of Positions
8
Circuit Application
Signal
Contact Base Material
Phosphor Bronze
Entry Location
Side
Performance Category
Cat 5
Multiple Port Configuration
Ganged
Connectors & Connector Components Type
Connector
Connector & Contact Terminates To
Printed Circuit Board
Number of Contacts Loaded
8
Number of PCB Ground Tabs
4
Contact Mating Area Plating Material
Gold
Port Matrix Configuration
1 x 4
Contact Underplating Material
Nickel
Shield Plating Material
Tin over Copper
Shield Material
Copper Zinc Alloy
Modular Jack & Plug Interface Type
RJ45
Centerline (Pitch)
.04 in
PCB Ground Tab Location
.135 in, -3.43 mm
Connector Mounting Type
Panel
Housing Material
High Temperature Thermoplastic
Profile
Standard
Panel Mount Feature
Without
Latch Orientation
Inverted - Latch Up
Termination Method to Printed Circuit Board
Through Hole - Solder
Contact Current Rating (Max)
1.5 A
Grounding Options
PCB and Panel Ground
UL Flammability Rating
UL 94V-0
Status Indicator
None
Number of Panel Ground Tabs
12
Operating Temperature Range
-40 to 185°F
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Keyed
No
Connector Contact Density
Standard
PCB Mount Orientation
Right Angle
Connector Product Type
Connector Assembly
Connector Style
Jack
PCB Contact Termination Area Plating Material
Tin
Housing Color
Black
Port Configuration
Multiple Ports
